CE Approved Automatic Woodworking Sliding Table Panel Circular Saw for Sale

Product Description

Technical Paremeters

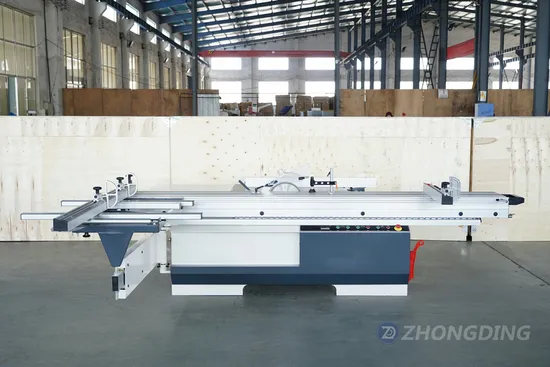

ZD3200 Sliding Table saw

Dimension of sliding table	3200x388 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	350 mm
Max cutting height 90°/ 45°	80/55mm
Speed of main saw spindle	4000/6000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Overall dimension	3250x3150x900 mm

Product Details

Motor:
#Power: 5.5kw+1.1kw
#100% Copper
# Aluminum Shells
#With overloading and overheating protection device.
#Use car belt as motor belt for longer lifetime

Sliding Table:
#Double layer extruded Aluminum profile,more rigid and strength.
# Euro style Steel bar sliding table,more precision and smoothly.

Angle ruler:
Cutting smaller panerls at beveled degree.
Independent electric box:
#Electric box is dustproof, which can low rate of power failure.
#Top quality electric parts, more sensitive and longer lifetime.
#Motor matches overload and overheat protect function.

European style dust hood:
Manual pressure feeder and panel clamp to position the panels when cutting.
Saddle:
Exclusive design, Inner hole machining center is hole milling, sliding smoothly, mm level attach with fine-tuning function, time saving and labor saving when regulating, supporting 150*50 saddle, can cut 1300 big board.
