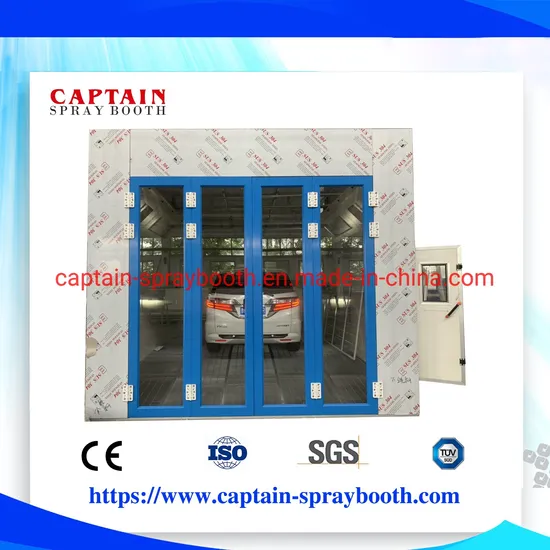

Spray Booth/Paint Box for Small Cars

Product Description

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .

1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Why is ''Captain'' the right choice for you?
Innovative Products, Passionate People, Great Value and ZERO Risk.

Model No.: D7006GS
Inside Dimension	6900×3900×2700 mm(L×W×H)	Outside Dimension	7000X5350X3400mm(LxWxH)
Front Door	3000×2600 mm(W×H), 3 folds color: White, blue, red, orange
Service Door	700×2000mm(W×H), 1 unit with 2 sets pressure lock
Basement	Galvanized steel, 300mm high, 5 rows grids ; 2 PCS painted ramps.
Wall Panel	50mm thick EPS, 950mm wide, density is 14kgs/m2. The panel with double sides 0.4mm steels, Tongue and groove interlock structure.
Ceiling Panel	0.8mm galvanized steel
Intake&Exhaust System	2 sets 4kw centrifugal fan for air intaking, air capacity is 26000 m3/h; 1x5.5kw for exhausting, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. Standard air duct is 3m.
Lighting System	Ceiling Lights: 8units×4PCS=32PCS×16W LED lights, Side Lights: 10 units×2PCS=20 PCS×16PCS LED lights Illumination≥1000Lux.
Heating System	Italy Riello G20 diesel burner, 200000Kcal/h. Stainless steel heat exchanger, max temperature: 80ºC. The burner need the diesel as resource to heat air and then the hot air go throught heat exchanger to the room.
Purification System	Pre-filter: On the air inlet to prevent large dust and other impurities; Ceiling filter: On the ceiling frame to prevent much smaller dust, make sure the air is clean. Fiberglass floor filter: Under grilles. To prevent paint mist go outside. Activated carbon filter: On air outlet. To absorb paint smell 4 kinds of flters to protect workers and environment. We also put activated carbon particle to help absorbing paint smell.
Controlling System	Computer control, screen touch. Editted program can be according to requiremment. Spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, Emergency stop, breakdown alarm, etc.
Power	16 KW

Basic drawing: before placing order, we will give you draw for your confirmation
Real photos:
Production process:
Package and Delivery
Installation-we can give you installation draw to help you with assemble
High quality parts-wall panel
High quality parts-stainless steel heat exchanger
High quality parts-control panel
Installed models by customers
different colors for your choice
our workshop
factory view
The same price higher quality, the same quality lower prices.
*2 years quality warranty! ! !
*Fast and stable supply ability! ! !
*Personalized design to meet customer various needs! ! !
Over 14 years big spray booth factory;
Powder coating technology treatment;
Factory price and best quality;
OEM available.
Detailed Product Description
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
"Customer Services" is our business philosophy. Aurora Finishing Systems is the leader in unmatched reliability and flexibility in productivity. Excelling in these areas defines our corporate culture and our sole objective of helping our Clients succeed in their businesses
Some of the products offered by our Team (which will interest you) are listed below:
A. Paint Finishing Systems
B. Powder Coated Lines
C. Electro-Coating (Anodic or Cathodic)
D. Power Spray Washers, DIP Tanks (Cleaning/Phosphating)
E. Industrial Ovens (Convection/Infrared)
F. All Type of Spray Booths
G. Water Wash Systems
H. All kind of Conveyors (Overhead, In-floor, Flat-Top etc. )
I. Hoist Systems
J. Dust Collectors
K. Circulating & Ventilation Systems
L. Prep Stations
M. Air Makeup Units
N. Paint Application Equipment (Spray Guns, Pumps, Proportioners etc. )
O. Paint Kitchens/Storage
P. Down Draft Tables
Q. Air Cleaning Equipment & Clean Rooms
R. Sand & Grit Blasting Systems etc.

---
