220t4100mm Linkage 2hpa Tandem Double Bending Machine Linkage Hydraulic Press Brake

Product Description

Product Description

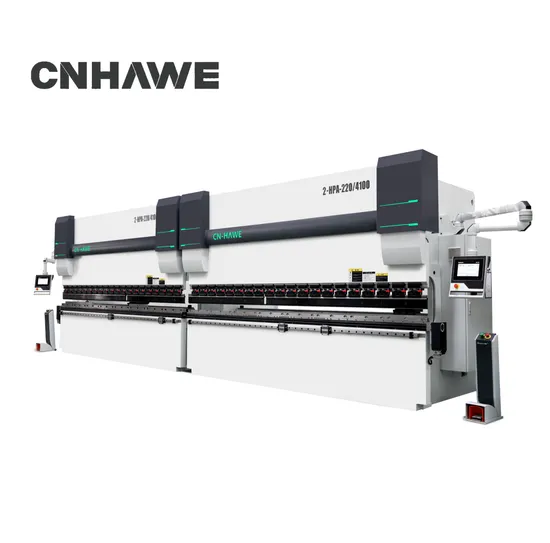

2HPA Tandem CNC Press Brake
The 2HPA tandem press brake is designed with a high degree of flexibility, making it suitable for a wide range of bending tasks. This machine can handle the bending of extended workpieces, such as 12-meter light poles, with ease and precision. Additionally, its ability to function both autonomously and in tandem with other equipment further enhances its versatility, allowing it to adapt to various production needs and workflows.
In addition to the hardware advantages, the software support of the 2HPA tandem series press brake cannot be ignored. The controller manufacturers that cooperate with CNHAWE provide rich application libraries and customized development services, allowing users to adjust machine settings according to their specific requirements. These software tools can help operators optimize bending sequences, predict material rebound, and reduce trial and error times, thereby further improving work efficiency and product quality.After more than a decade of iterative updates, CNHAWE's electro-hydraulic servo control technology has reached a new level. Looking at the entire industry, the deep integration of this technology with press brakes has created a new era and continues to drive the development of the sheet metal fabricating industry.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
2-HPA-220-4100	2200	4100	230	180	13	170	3600	410	220	490	13	4280*1830*2790
2-HPA-400-4000	4000	4000	700	100	8	80	3100	500	300	610
2-HPA-400-5000	4000	5000	700	100	8	80	3800	500	300	610
2-HPA-400-6000	4000	6000	700	100	8	80	4800	500	300	610
2-HPA-500-4000	5000	4000	800	100	8	80	3100	500	300	610

Detailed Photos
CNC Controller
CNC controllers play a crucial core role in the motion control of press brakes. CNHAWE mainly uses controllers from three mainstream companies in the world, namely Delem from the Netherlands, ESA from Italy, and Cybelec from Switzerland.Proper tuning will enhance the compatibility between the controller and the machine. By combining our core assembly process with advanced tuning techniques, we can unlock a variety of high-end optional functions for customers to choose from.CNHAWE controllers elevate precision and efficiency with features such as instant angle adjustment, comprehensive 2D/3D programming capabilities, and advanced multi-axis control, guaranteeing uniform excellence in output.Back-gauge
The CNHAWE back-gauge system is at the forefront of the press brake industry with its excellent motion accuracy.We use imported ball screws and linear guides, which improves the accuracy and consistency in the production process of CNHAWE's CNC series press brakes.Our entire frame of back-gauge system undergoes high-temperature tempering treatment to eliminate internal stress, improve metal plasticity and toughness, and prevent precision loss caused by frame deformation.In terms of stop fingers, we have designed and applied a synchronous pulley mechanism controlled by a servo motor, which provides better control performance and accuracy for the CNC press brake machine's back-gauge system.Servo Motor
Servo motors have become the dominant technology in the field of industrial automation. It achieves high dynamic performance and improves machine production efficiency through low energy consumption, becoming the preferred choice for many enterprises. Compared to traditional motors, using servo motors can save up to 35% of energy, helping customers significantly improve efficiency and reduce operating costs in the production process.Punch & Die Tools
Prior to initiating an order, it is essential to deliberate on the appropriate press brake punches and dies. Selecting the correct combination of punch and die is vital for attaining the desired bend configuration. Especially for heavy-duty 2HPA tandem models, our tools can be customized for one-to-one specialization. This greatly satisfies the needs of our customers and saves a lot of unnecessary trouble. Our offerings include tailored tooling solutions that align with the precise bending specifications provided by our customers.
Crowning System
This seamlessly aligns the deformation curve of the slider with the compensation curve, ensuring that the straightness and angle consistency are always maintained during the production and processing of our press brake products. Not only does it occupy a large market share in the domestic market, but it is also exported to many countries around the world. At the same time, our deep strategic cooperation with Dutch manufacturer Wila enables us to provide customers with more high-end optional options, especially for the European and American customers.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.

---
