Cheap High Precision M32 Vertical Column Gear Type Tapping Machine

US$2,900.00
1-4 Pieces
US$2,850.00
5-9 Pieces
US$2,800.00
10+ Pieces

Basic Info.

Model NO.
DK-III
Structure
Vertical Tapping Machine
Layout
Vertical
Controlling Mode
Motor
Number of Shaft
1
Hole Diameter
M32
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Travel
65mm
Taper
Mt3
Swing
460mm
Working Table
340*380mm
Main Spindle to Working Table
600mm
Motor
2.2kw
Transport Package
Wooden
Specification
250kg/920*850*1200mm
Trademark
CDK
Origin
China
Production Capacity
500/Month

Packaging & Delivery

Package Size
92.00cm * 85.00cm * 120.00cm
Package Gross Weight
250.000kg

Product Description

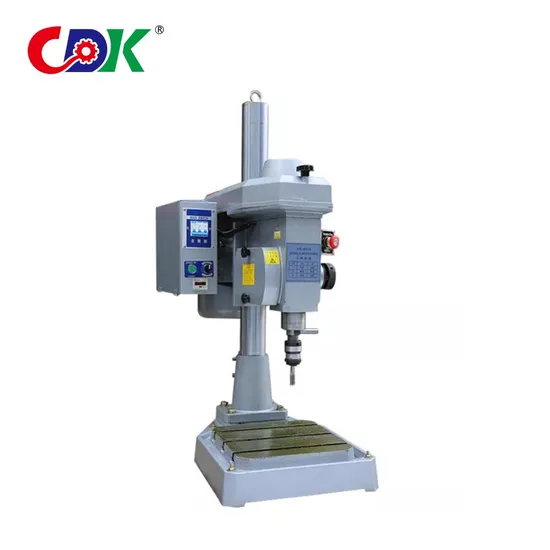

Cheap High Precision M32 Vertical Column Gear Type Tapping Machine
1. Special design of positive and reverse motor, low inertia to prevernt breakage of tapping
2. Functional action can be selected for perforated teeth,blind teeth and perforated teeth
3. The spindle rotation speed is high and the spindle speed is low when the tapping is reversed, and the accuracy of tapping depth is 0.1mm
4. It is especially suitable for the processing of fine and blind holes in precise hardware such as watches, glasses, mobile phones and cameras
5. It can be equipped with multi-axis tapping device to complete one-off multi-hole tapping and automatic tapping at the same time, which improves the production efficiency
6.Solid column, tempered to eliminate stress, hard chromium plating, friction resistance, no rust
