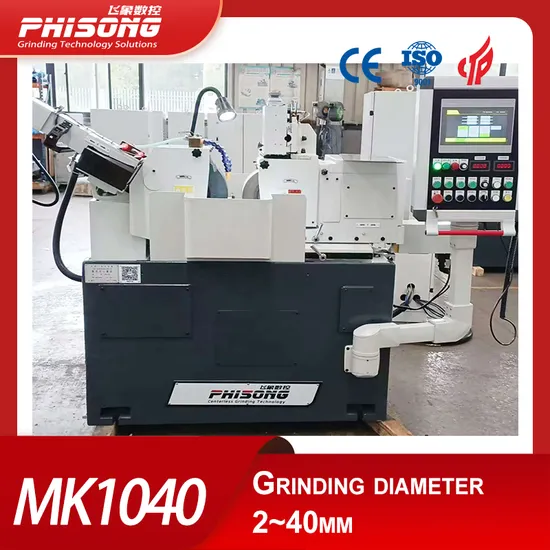

CNC Cylindrical Centerless Grinding Machine for Short Bars, Bearing Rings, Pins

Product Description

Product Description
1.Three servo axis, Mitsubishi Q/R series control system (Siemens CNC for option)
a.Axes Y for regulating wheel frame servo feed, min. 0.001mm.
b.Axis X for feeding of grinding wheel dresser.
c.Axis Z for reciprocating of grinding wheel dresser.
2.Machine performance
2.1Machine body
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability
2.2. GW and RW(Regulating wheel).
GW and RW are cantilever type ,easier for wheel changing.
GW fixed on the machine bed, with better reliability and stability.
Adopts multi-pieces bush-bearings for the wheel spindle, better rigidity for grinding durability
2.3. Feeding
The cross shaped roller guideway & ball screw equipped servo motor supports the regulating wheel feeding & ball screw equipped servo motor supports the regulating wheel feeding.
Servo motor drives ball-screw through shaft coupling, min. feed 0.001mm
2.4. Dressing for GW and RW
GW dresser: Servo motor drives ball-screw for feeding and reciprocating.
RW dresser:hand wheel for dresser feeding,gear motor for reciprocating.

2.5.Electric
Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for grinding, dressing,feeding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional.
2.6.Coolant
Cooling tank with magnetic coolant separator,paper tape filter for optional
2.7.Main Accessories

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q /R series	1	set	Mitsubishi
Servo motor		1	set	Yaskawa
Operation display screen	10'	1	set	Weinview
Ball screw		3	sets	Nanjing
Grinding wheel motor		1	pc	Chisheng
Regulating wheel motor		1	pc	Chisheng
Low-voltage apparatus		1	set	Chint

2.8.Technical Data:

		3 Axes
In-feed Grinding	Dia.	1-40mm
	Length	120mm
Through grinding	Dia.	1-40mm
GW SPEC. (O.D.*width*I.D.)		PSA350*125*127mm
RW SPEC.(O.D.*width*I.D.)		PSA250*125*75mm
GW Speed		1870r/min
RW Speed (stepless)		20-180r/min
Swiveling Angle of RW	Vertical	-2°~ +4°
	Horizontal	0°~ +3°
RW carriage min. feed		0.001mm
GW dresser min feed		0.001mm
Height from center line of GW & RW to work rest		190mm
GW Motor		7.5 kw
RW Motor		1.1 kw
Power Supply		3N 50HZ 380V (optional)
Dimension(L*W*H)		1920*1681*1479mm
Machine Weight		About 2000KG
Accuracy (standard bars)	Roundness	0.002mm
	Cylindricity	0.003mm
	Roughness	Ra.0.32μm

Grinding Examples&Operations
Automatic Solution
Company Profile
Jiangsu Phisong CNC machine Co., Ltd., known for it′s professional centerless grinding technology at home and abroad, Phisong CNC inherits and absorbs the essence of the advantages on cylindrical grinding machine, centerless grinding machine design, production and manufacturing industry. Our products are selected by a number of famous Top-500 enterprises and listed companies at home and abroad and exported to countries and regions in Europe & America, Russia, southeastern Asia etc.We presently built offices with modernized environment, process with advanced producing technology, Adopt ISO9001 international quality management system. For different processing requirements, we customized professional processing technology for customers in improving their processing level and production efficiency with concept of professional skill, integrity and enthusiasm.Phisong gathered a large number of professional elites, based on the full range of product quality management, and the employment of senior experts as a long term production technology consultant, with a professional attitude, devoted to product R&D and production. We have a wide range of applications: From micro nozzle needle to high precision pump piston to heavy rail shaft, we continue to develop centerless grinding technology, won the majority of customers′ praise.
