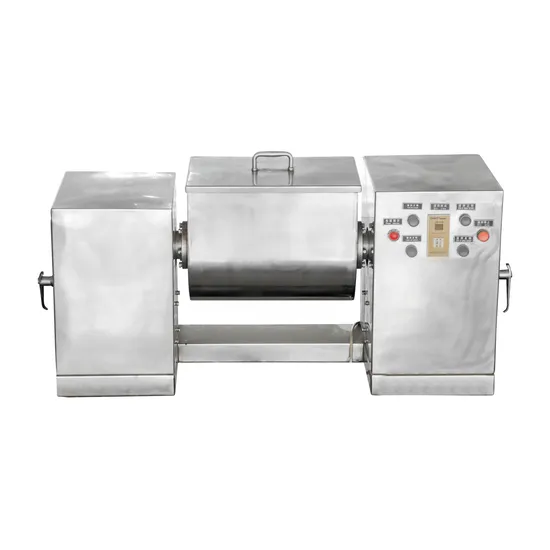

CH150 Trough Mixing Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
CH150
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Applied in
Food or Pharmaceutical
Size
1480*600*1190
Working Volume
100
Speed of Agitating Paddle
24
Turning Angle
<105
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8474390000
Production Capacity
100

Product Description

CH Series Trough Type Mixer
Main Application :
As a whole stainless horizontal tanker typed mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
Technical Parameters:
Model CH-150 CH-200 CH-300 CH-400 CH-500 CH-600
Working volume(L) 100 200 220 300 400 550
Speed of agitating paddle 24 24 24 24 24 24
Turning angle <105 <105 <105 <105 <105 <105
Agitation motor 3 4 5.5 5.5 7.5 7.5
Discharging motor(kw) 0.55 1 0.75 0.75 1.5 1.5
Overall dimension(mm) 1480*600*1190 1600*600*1250 2150*700*1250 2280*800*1250 2400*900*1250 2400*900*1300
Weight(kw) 650 720 750 780 820 850

Working Principle:
CH type agitating paddle is rotated, by mechanical driving, which pushes the material to turn repeatedly and to mix uniformly. operate with electrical control, it can set mixing time to realize au-tomatic stop and electric discharge upon expiration, thus improving the mixing quality of each batch of material and realizing high homegeneous mixing.
