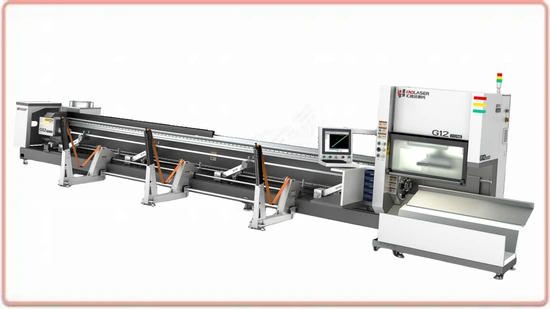

Advanced Automated Tube Laser Cutter for Copper and Brass Materials

Product Description

Product Description

Product Parameters
Parameters of the whole machine

Category	Attribute	Parameter
Machine Attributes	Equipment series	Small-sized platform: 125 series
	Size(mm)	9600*3300*2300
	Total weight (ton)	4.2T
	Full power consumption of the whole machine (KW)	20~25
	Operating temperature (ºC)	0-40
	Cutting material	Carbon steel, stainless steel, aluminum alloy, copper, brass, etc
	Cutting function	Cutting;Punching holes;Chamfering
Processing range	Processing stroke (mm)	Round tube: ¢12- ¢180 Square tube:12-125 Rectangular tube:max150*100
	Cutting seam width (mm)	0.1-0.2
Acceleration	Maximum acceleration on X/Y axis	1.5G

Technical parameters of components

Component Name	attribute	Parameter values
Laser	Output power	3000W
	Working mode	Continuous optical fiber
	Fiber diameter	50μm
	Cooling method	Water-cooling
	Cutting material	Metals such as carbon steel, stainless steel, aluminum alloy, copper, brass, etc
Machine bed	Structure	Pipe plate welding
	Length	Optional

Key component configuration

Serial number	Component Name	Brand	Model/Origin
Key components
1	Fiber laser	Raycus(optional)	China
2	Cutting head	OSPR/BOCU(optional)	China
3	Motor	INOVANCE/YASKAWA(optional)	China/Japan
4	Laser specific chiller	Hanli/Teyu	famous Chinese brand
5	Electronic control components	Schneider,France	China
6	Pneumatic components	AIRTAC, Taiwan	China
Processing components
7	Main bed	HND Laser	China
8	Chuck	HND Laser	China
9	Loading and unloading system	HND Laser	China
Special CNC cutting system
10	Operating system	Shanghai Bochu	Bus System/China
11	Nesting software	Shanghai Bochu	3D pipe cutting specialized software/China
Other
12	Packaging and transportation	Standard packaging	Standard configuration

Our customers
Certifications
Laser Cutting Machine SGS Certificated
(Can be customized to your needs)
Embark on a journey of unparalleled excellence with our laser cutting machine, distinguished by the esteemed SGS certification. This hallmark of quality assures you of superior mechanical performance and unwavering compliance with international safety and stability standards.For business leaders, managers, and operators alike, this represents a vital assurance of reliability and safety, ensuring uninterrupted operation and a tranquil peace of mind with every use.
Packaging & Shipping
Our laser tube cutting machines have reached over 50 countries worldwide, guaranteeing that your products will be delivered safely and smoothly to your factory doorstep, no matter where you are.

Company Profile
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO.,LTD HNDLaser Technology Co., Ltd. is a reputable national high-tech enterprise supported by HNDLaser in Zhangjiagang. We are at the forefront of the research, development, production, and application of advanced laser equipment. Our portfolio showcases Zhangjiagang HND Intelligent Equipment Co. and other prestigious enterprises.
With unwavering and substantial annual R&D investments, our products have achieved extensive market recognition, ensuring a steady production output across the entire laser industrial chain. HNDLaser embraces the philosophy of being people-oriented and fueled by scientific and technological innovation. Our unwavering focus on innovation and talent cultivation is the cornerstone of our strategy to continually enhance market share and elevate product recognition.
After Sales Service
A. Pre-Sales Service
1. Technical Consultation: Our team is committed to providing you with expert technical and pricing consultation within two hours based on your requirements. We readily offer relevant samples and product information, swiftly addressing any queries you may have, such as processing table size, precision, cutting thickness, and operating costs related to cutting parameters.
2. Site Visits: We enthusiastically invite you to visit our company for inspections at your convenience.
B. After-Sales Service
1. Our comprehensive after-sales service system is designed to monitor customer feedback around the clock, ensuring your satisfaction.
2. From the date of purchase, you are welcome to participate in various technical training sessions at our company free of charge, enhancing your operational proficiency.
3. After purchasing the machine, we can arrange for our skilled technicians to travel to your country for installation and operation training, ensuring a seamless transition.
4. You can share your suggestions or inquiries through multiple channels, including phone, fax, mail, email, or website customer messages, ensuring we are always within reach.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if you encounter any issues with the main components of the machine (excluding consumables) during the warranty period, we'll swiftly replace or repair them at no extra cost.
Q2: I'm unsure which model best suits my needs. Can you help me decide?
A2:Certainly! Please provide the following information:
(1) The type of material you're working with.
(2) The thickness,diameter,length and shape of your material.
(3) The cutting requirements you need.
Q3: What are your payment terms?
A3:We offer flexible payment options such as TT, Western Union, PayPal, LC, and Cash, among others.
Q4: Do you provide CE certification and other necessary clearance documents?
A4:Absolutely, we have all the essential original documents. Post-shipment, we'll supply you with the CE document, packing list, commercial invoice, and sales contract to facilitate customs clearance.
Q5: What should I do if I'm unfamiliar with the machine operation or encounter issues after receiving it?
A5:Don't worry, we provide a comprehensive user manual with detailed images and a USB disk to guide you step-by-step. Plus, we offer monthly updates to keep you informed on any advancements.
Q6: How can I obtain a sample to verify the quality and results?
A6: Simply send us your sample, and we'll conduct a free test for you.
Q7: When can I expect to receive a quotation?
A7:Your inquiry will be addressed with expertise and precision within 12 hours.

---
