Basic Info.
Marketing Type
New Product 2022
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Power
Electric/Gasoline/Diesel Motor
Transport Package
Wooden Case
Specification
2240*1000*2230mm
Trademark
IERUI MACHINERY
Packaging & Delivery
Package Size
230.00cm * 125.00cm * 175.00cm
Package Gross Weight
800.000kg
Product Description
Product Parameters
Max Splitting Force
| 15T
| 20T
|
Cycle Time
| 7seconds
| 8seconds
|
Max Splitting Length
| 610mm
| 610mm
|
Max Splitting Diameter
| 380mm
| 400mm
|
Work Efficiency
| 4m3/h
| 5m3/h
|
Power
| 15HP gasoline engine
| 15HP gasoline engine
|
Engine Displacement
| 420cc
| 420cc
|
Fuel Tank Capacity
| 6.5L
| 6.5L
|
Engine Oil Capacity
| 1.1L
| 1.1L
|
Gross Torque
| 25N.m/2500rpm
| 25N.m/2500rpm
|
Firewood Conveyor
| Length:3.2m
| Length:3.2m
|
Width of belt:250mm
| Width of belt:250mm
|
Width of chute:400mm
| Width of chute:400mm
|
Hydraulic rotator:1set
| Hydraulic rotator:1set
|
Chain Saw length
| 1.2m
| 1.2m
|
Chain Saw Rotate Speed
| 5600rpm
| 5600rpm
|
Sawing Speed
| Adjustable
| Adjustable
|
Oil Pump
| 22GMP, 2-stage
| 22GMP, 2-stage
|
Oil Tank Capacity
| 50L
| 50L
|
Control Valve
| ONE-handle
| ONE-handle
|
4-Directional control valve
| 4-Directional control valve
|
Tyre
| 12"
| 12"
|
Knife
| 4 ways (6 ways option)
| 4 ways (6 ways option)
|
Weight
| 480kg
| 510kg
|
Main Machine Package size
| 2200x900x1100mm
| 2200x900x1100mm
|
Conveyor Package Size
| 2260*960*1170mm
| 2260*960*1170mm
|
Units/20':
| 12Units
| 12Units
|
Product Description

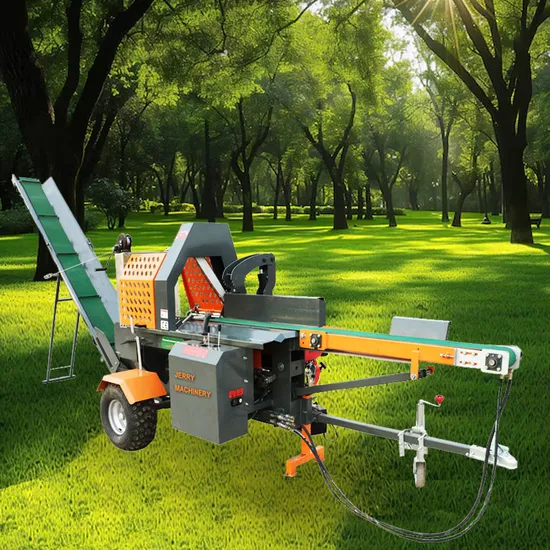

Jierui Machinery are proud to unveil our new range of firewood processors,
After years of being in the forestry industry a processor, has always been in the works. The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard.
The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard.
We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head.
The processor has a 50mm tow hitch for towing around the yard or working area.
Product Details
Hydraulic automatic log clamping Automatic feed conveyor system
Setting the length of firewood Fully automatic control system
Both 4-way and 6-way are supported
Log lifter-JR100 Log table-JR200
Automatic safety protection device We use STIHL chain saw guides and
Splitting wedges can be adjusted up or chains imported from Germany
down
Detailed Photos
Certifications
Attend the exhibition
Company Profile
Shandong Jierui Machinery Equipment Co., Ltd. is one of the world's leading high-quality sawmill manufacturers. The company has been committed to the production and R & D of sawmills and sincerely serves 12000 enterprises. Our products have been exported to 61 countries in the world.
At present, the company covers a large number of product lines, including log sawing equipment, solid wood furniture processing equipment and wood chopping equipment. With standardized quality management and service, the company has won the favor of many customers and become the best sawmill supplier in the world. The company is committed to continuously strengthening its own technological innovation and accelerating the R & D of sawmill machinery, Strive to provide each partner with the best combination of sawmill production lines.
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to South Asia(50.00%),Africa(50.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Firewood processor, Wood log splitter, Woodworking machinery,Sawing machine,Hardware cutter,Saw blade,Mechanical customization4. why should you buy from us not from other suppliers?A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products. B) We have various products and can offer all the machines an5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
>>
