Three-Source High Vacuum Evaporation Coater for Metal Film

Product Description

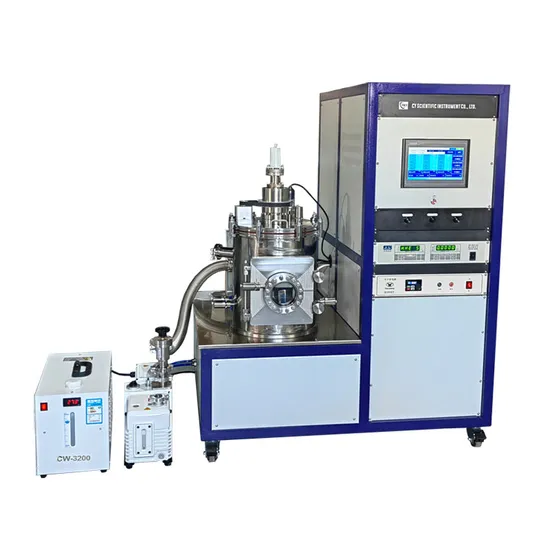

Three-source high vacuum evaporation coater

Product Description
Three Evaporation Source High Vacuum Coater is a high-vacuum coater with three evaporation sources. The equipment adopts a front door type vacuum chamber design, which has a large chamber space and strong expandability, which can meet the evaporation coating of multi-style and large-size samples.
The chamber is equipped with an upper sample stage, and the clamping or clamping sample mounting parts can be selected according to the user's sample style.
The sample stage is rotatable, heated, and all operations are integrated through the touchscreen. The vacuum pump group of the equipment is a two-stage vacuum system, which consists of a bipolar rotary vane vacuum pump and a turbo molecular pump, which can provide a clean and oil-free high vacuum environment for vacuum coating experiments; the vacuum system contains a complete pneumatic valve system, users can One-button operation through the touch screen realizes operations such as vacuum extraction, non-stop sampling, and complete shutdown.

Product Parameters

Sample Stage	Size	φ150mm
	Heating	Max. 500C
	Rotary	0~20rpm, adjustable
Evaporation source	Tungsten boat/Basket*3
Power	Each evaporation source comes with an DC power supply. Thye Can work independent or at the same time.
Vacuum chamber	Cavity size	φ300mm*400mm
	Observation window	Front φ100mm
	Cavity material	SS304
	Opening	Front door opening
Film thickness control	Quartz crystal film thickness monitor, Frequence 0.10 Å
Vacuum system	Backup pump	Rotary Vane Pump, 1.1L/s
	Exhaust port	KF16
	Secondary pump	Molecular pump, 600L/s
	Exhaust port	CF160
	Vacuum measurement	Composite vacuum gauge
	Ultimate vacuum	5.0E-4Pa
Control System	PLC+ touch screen
Other	Supply voltage	AC380V,50Hz
	Overall size	1000mm*800mm*1500mm
	Total power	7kW
	Total Weight	350kg

Detailed Photos


FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have our own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Made-in-China Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact us.
