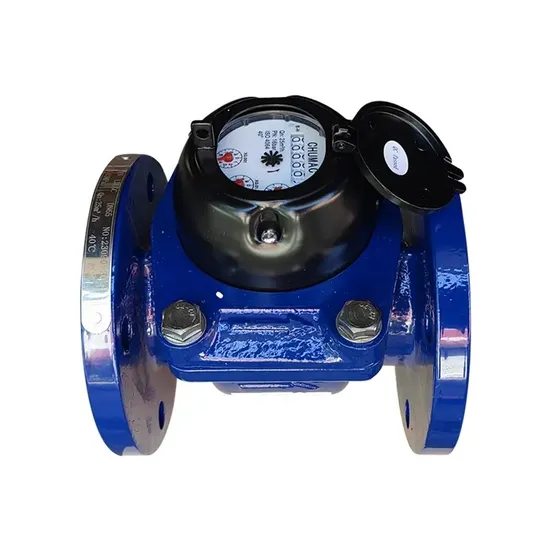

Multi Jet Digital ISO 4064 Smart 50mm Removable Woltman Water Meter

Product Description

Multi jet Digital ISO 4064 Smart 50mm Removable Woltman Water Meter
Product Description Specification 1. Type name: Woltmann Type Water Meter
2. Size: DN50-DN300
3. Standard :ISO 4064 Class B
4. Material: Cast iron
5. PN : 1.0/1.6 Mpa (10/16bar)
6. Horizontal installation Working Conditions Water temperature: 0.1ºC~50ºC ( 0.1ºC~90ºC for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement) Error curve From qt inclusive up to and including qs is ±2%;
From qmin inclusive up to but excluding qt is ±5%.
Tecnical Details

Meter Size DN (mm)	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Min Reading	Max Reading
	m³/h				m³
50	30	15	3.0	0.45	0.001	999999
65	50	25	5.0	0.75	0.001	999999
80	80	40	8.0	1.2	0.001	999999
100	120	60	12	1.8	0.001	999999
125	200	100	20	3.0	0.001	999999
150	300	150	30	4.5	0.01	9999999
200	500	250	50	7.5	0.01	9999999
250	800	400	80	12	0.01	9999999
300	1200	600	120	18	0.01	9999999
350	1600	800	160	24	0.1	99999999
400	2000	1000	200	30	0.1	99999999
500	3000	1500	300	45	0.1	99999999

Detailed Photos Installation Installation requirements: Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation
Production Process
Customer Photos
Packaging & Shipping
Company Profile
TIANYI SUNS PIPE&FITTINGS CO.,LTD. is one of the main suppliers in China manufacturing and supplying of advanced pipe systems and solutions, connecting people with water and energy. We provide a broad range of pipeline system products for infrastructure, building ,irrigation ,industry, gas and energy applications. We are completely committed to international quality standards and are certified to ISO 9001 (Quality Management) and relevant products certifcates. Our products are manufactured based on standards ISO2531, EN545, EN598, EN14525,EN12842,BS4504, ISO7005, AWWA C219, DIN3352, BS5163,BS5153,AWWA C509, EN124 and so on . Our main pipeline system product are as below:
ductile iron pipe, ductile iron pipe fitting, manhole cover, gate valve, butterfly valve, check valve, Y strainer, flange, dismantling joint, flange adaptor, flexible coupling, saddle, gibault joint and repair clamp. we can not only serve for the distributors, but also for the big water projects from the overseas, our products have been widely recognized in the international markets and have already obtained many honors and reputations.
As a responsible manufacturer and supplier of pipeline system products, we are with proved with long-term performance and reliability. We are passionate about creating sustainable, innovative solutions for our customers and communities and we thrive in the international environment to provide you our best services, please be ensured that our constant motivation is to always go beyond your expectations by continually offering you the highest quality level.

FAQ Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.

---
