V430 3-axis MEMS accelerometer for vehicle crash test application, vibration sensor

Product Details

Product Description

Product Description

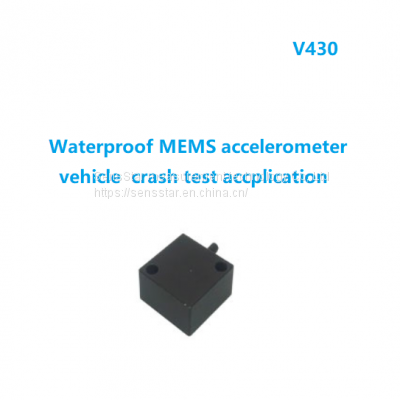

Model V430 is a miniature triaxial accelerometer designed for crash testing that require minimal mass weight and a wide frequency response. The accelerometer meets SAE J211 specifications for instrumentation for impact testing. It is available in two different acceleration ranges, 500 g and 2000 g full scale. The tri-axial accelerometer is based on a latest piezo-resistive MEMS sensing element, which offers exceptional dynamic range and stability. This unit features the full bridge output configuration with a compensated temperature range from 0 to +50º C. Model V430 accelerometer has a standard transverse sensitivity accuracy of <3%. Advance MEMS structure provides outstanding shock survivability, a flat amplitude and phase response up to 7kHz.
Feature / Application
• Water proof • Auto crash test
• DC response • Shock test
• Miniature tri-axial • Drop test
• Shock, low & high frequency
• 10K g shock survivability
• 2-10Vdc Excitation
• Integrated 1 to 3 cable

---
