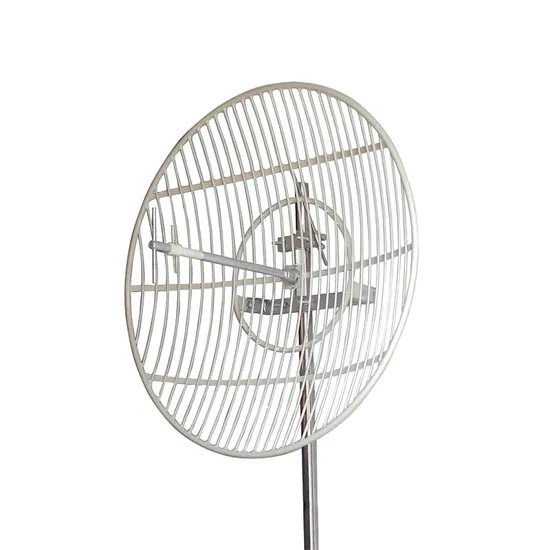

High Gain Parabolic Donor Antenna (380-395MHz) for Repeater Receiving Signal

Product Description

ELECTRICAL PARAMETER
ITEMS	SPECIFICATIONS
Frequency Range (MHz)	380-395
Bandwidth(MHz)	15
Gain(dBi)	17
Horizontal Beam Width(3dB)(°)	26
Vertical Beam Width(3dB)(°)	23
VSWR	≤1.5:1
Front to Back Ratio(dB)	≥25
Polarization	Vertical
Input Maximum CW Power(W)	100
lmpedance(Ω)	50
Input Connector	N female

OTHER PARAMETER
ITEMS	SPECIFICATIONS
Dimensions of Antenna(m)	Φ1.8
Weight of Antenna(kg)	30
Diameter of Installation Pole(mm)	Φ50~Φ75

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Delivery & Shipment Date:
3-30 days
Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
Q6. Output Power & Coverage Areas:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.

---
