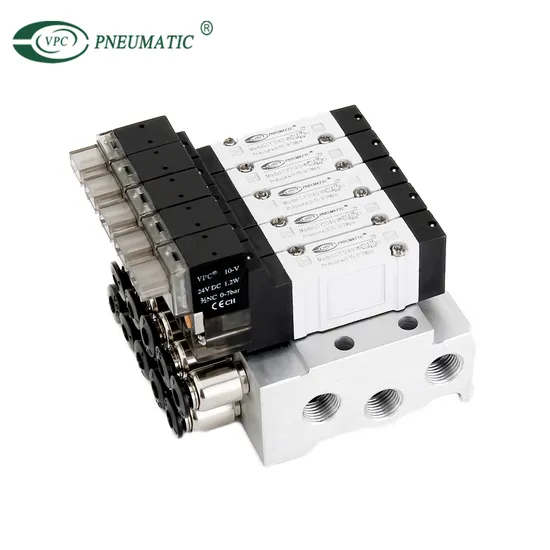

SMC 3/2 Way Sy3120-M5 Manifold Block Pneumatic Solenoid Valve

Product Description

SMC Sy3120-M5 Manifold Block Pneumatic Solenoid Valve Product Description
1.High-precision pilot head 5s/time, high sensitivity, no stuck;
2.Built-in protection circuit against surge,directly connected to PLC without additional intermediate relay;
3.No spring air reset structure design, fast response speed,no fatigue, long life;
4.Single, Double coils are optional , can be arbitrarily matched;
5.Multiple valve bases integrated.

Product Specification

Model	SY3120	SY3220	SY3320	SY5120	SY5220	SY5320
			SY3420			SY5420
			SY3520			SY5520
Working medium	Clean air
Working Pressure	0.15 to 0.7Mpa	0.1 to 0.7Mpa	0.2 to 0.7Mpa	0.15 to 0.7Mpa	0.1 to 0.7Mpa	0.2 to 0.7Mpa
Working temperature	-10 to 60ºC
Max operating frequency	10Hz	10Hz	10Hz	3Hz	5Hz	3Hz
Response time	<12ms	<12ms	<15ms	<19ms	<19ms	<32ms
Exhaust way	Centralized exhaust
Lubrication	Not necessary
Installation type	Free
Impact resistance vibration resistance	150/30m/s²
Protective class	IP65
Joint size	M5			1/8"

How To Order
Ordering Code SY Series Solenoid Valve
SY 3 1 20 Nil - M5 - DC24V

3→ Type Code	SY3: SY3 series	SY5: S:5 series	SY7: SY7 series	SY9: SY9 series
1→ Series Code	1: Single control	2: Double control
	3: Double control 3Position Center Close
	3: Double control 3Position Center Exhaust
	3: Double control 3Position Center Pressure
Nil→ Coil	L: Vertical Type	M: Horizontal Type	G: Pin Type
M5→ Joint Size	M5: M5X0.8	01: 1/8''
DC24V→ Standard Voltage	DC24V	AC220V 50/60HZ

Product Category
Packaging & Shipping
Packaging type:

VPC Box

White Box

Color Box

VPC Carton

Pallet

Delivery time:

conventional products	customized products	specially customized products
on the day of payment	10 workdays	25 workdays.

Payment term:

Paypal	TT	Western Union	DP	LC	Money Gram	Online Bank	Pay later	DA
YES	YES	YES	NO	NO	YES	YES	YES	YES

Transportation:
Express(DHL, UPS, TNT, JCEX, FEDEX) is available.
Sea and Air transports are available.
The most suitable transport way will be chosen for you.
About Us
Product FAQ
Q1:What is your quality assurance?
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Bank transfer order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: 1 year warranty.

---
