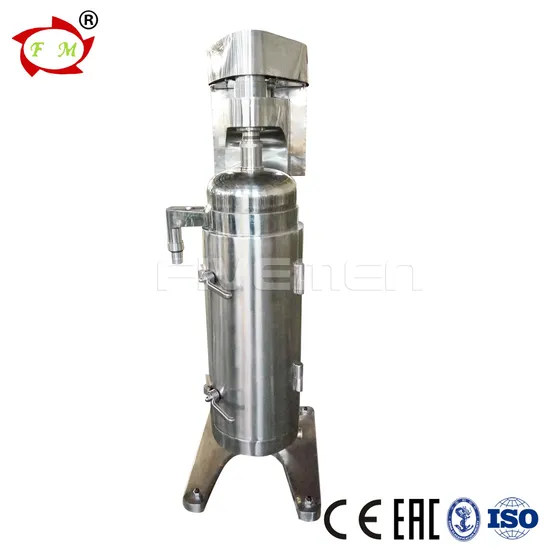

Gq Clarify Tubular Centrifuge Separator for Wine /Beer

Product Description

Product Description
The Feature

The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has t types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.

The Application

it has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um,

which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products.

For GF three phase tubular centrifuge, which can be used for the oil water solid separation.

such as vegetable oil, animal oil. and other waste oil.
Working principle


On the top of drum is the flinch axis, under is the damp drift bearing. Main axis linked by buffer and passive wheel,

via conveyor belt, fasten wheel, the dynamic is transmit to drum and it will rotate axes to run at rapid speed.

The stuff is ripped into via liquid inlet, under the centrifuge force, the stuff along the wall of drum flow upward.
Structure
Drum is composed by upper cover, regulate loop, bottom cover drive the hollow axis and pipe drum. In the drum, there install 4 wing panels, make the liquid easily reach the speed of running corner. Discharge the liquid from the two outlets on the top of the drum, and then the liquid flow into the accumulating tray and tanks.
1.Drum, main axis and flinch joint hang on the belt wheel, the wheel combined other parts composed of machine head.
The upper end of the axis support on the buffer and the drum linked by nut.

Model	GQ75	GQ105	GQ145
Drum speed(r/min)	20000	16000	14000
Max centrifuge force(R.C.F)	16700	15050	15900
Drum inner diameter(mm)	75	105	145
Drum effective length(mm)	285	742	730
Solid volume in drum(L)	2	6	9
Stuff inlet pressure (kg)	>1.5	>1.5	>1.5
Capacity(water flux)(L/h)	20~200	20~1200	500~1500
motor powder(KW)	1.5	3	3
Dimensions(mm*mm*mm)	660*390*1200	760*450*1680	890*580*1670
Stuff inlet diameter(mm)	12	12	12
liquid outlet diameter(mm)	32	38	32
liquid outlet height(mm)	630	880~940
