Waterproof Safety Industrial Electric Control Vertical Lift Sectional Door

Product Description

>>Industrial Sectional Door

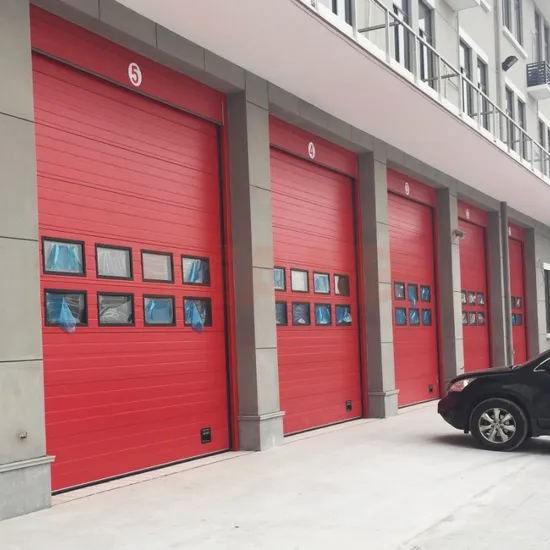

>> Product Show

Material Description
Size range	W:6000-12000mm H:2000-8000mm
Opening and closing speed	0.25m/s
Door panel material	Galvanized steel or aluminum plate
Door panel thickness	Anti-pinch door panel:40mm Insulated bridge door panel:43mm
Windows	Optional
Pass gate	Optional
Safety devices	Standard configuration, wire rope breakage protection device, torsion spring breakage protection device, wireless airbag
Wind resistant	Standard 450Pa, higher to 700Pa
Open method	Electric, manual
Color	RAL9002,RAL9016,RAL1023,RAL5005,RAL3002,customizable

Excellent insulation and closeness performance, good anti-wind
structure, safe and reliable operation guarantee!

Motor Technical Parameters
Model	10DI	10C	14 H-F
Output torque	100Nm	100Nm	140Nm
Output shaft speed	24 rpm	24 rpm	14 rpm
Rated power	0.37KW	0.37KW	0.55KW
Rated voltage	1*AC 230/440V	3*AC 230/440V	1*AC 230V
Rated frequency	50Hz	50Hz	50Hz
Control voltage	24V	24V	24V
Working style	S3-60%	S3-60%	S3-60%
Safe current	10A	10A	10A
Protective level	IP 54	IP 54	IP 54
Approximate weight	12.4Kg	12.8Kg	12.4Kg
Limit switch	15/30	15/30	15/30
Shaft diameter	25.4mm/31.75mm	25.4mm/31.75mm	25.4mm/31.75mm
Frequency converter	--	--	0.75KW
Control box adjustment limit function	√	√	√
Fault display function	--	√	√

>> Structural Drawing

Structural Components
1. Rail	19. Top door panel
2. Vertical rail support angle plate	20. Lighting window
3. Horizontal rail	21. Middle door panel
4. Horizontal rail support angle plate	22. Folding
5. Side sealing strips	23. Bottom door panel
6. Door shaft	24. Lift handle
7. Shaft coupler	25. Bottom sealing door groove
8. Cable tray support frame	26. Bottom sealing strip
9. Cable tray	27. Roller
10. Double blade spring	28. Lifting cable
11. Spring anti-breakage device	29. Cable breakage protection device
12. Fixed spring seat	30. Bottom edge sealing
13. Loading spring sea	31. Vents
14. Motor	32. Chain lock
15. Control box	33.Side seals
16. Buffer	34. Top sealing strips
17. Roller	35.Top seal support groove
18. Roller Bracket

>> Product Advantages >Industrial sectional doors can provide a variety of lifting methods according to the actual civil
structure on site: such as straight type, standard lifting type, high lintel lifting type, low lintel lifting
type, etc, so that your building space can be customized.
>The industrial sectional doors have an unique roller shafe design, which distrobutes the force of
each hinge to the wheels on both sides, so that the door can run gently and extend the overall
service life.
>The door panel is made of sturdy material with double sided hot-dip galvanized steel, embossed
on the surface and embossed stripe design, and the inner layer is a high-density polyurethane form
insulation layer. The door panel has the function of preventing fingers from being pinched.
>The joints of the door panels are equipped with sealing rubber to ensure a good sealing effect.
The front and back panels of the door panels are made of coated steel plates, which have high
corrosion resistance and weather resistance.
1.Panel: A. Two layer of 0.4mm powder coated galvanized steel plate, PU foaming density 48±2kg/m3;
B. Surface printing layer: 30um; C. Total thickness: 40mm (standard) 50mm/75mm/100mm (optional) 2.Safety device: 1. Spring brake device (anti-broken); 2. Service life: 100000 opening and closing;
3. Driving force: 140N;
3.Accidient dropping safety device: Door bottom equips with the avoid dropping steel cord, to
secure the accidient dropping within 50mm
4.Guide rail: A. Special design three angle wheel brace secure smooth rolling of wheel;
B. Mute nylon wheel, noise level: ≤60db
5.Beam seals: Epdm sealing rubber is installed onto top, bottom and sides
6.Buffer and hinges: 2.5mm steel plate
7.Bottom wireless safety airbag: It makes the door doby lift back when touching somthing during
closing and stops the movement during opening. >> Company Informations
Q1: What is your MOQ?
A: 1set is OK.
Q2: What is the max available size of the doors?
A: The max length can be 6.5M. The max width is 6M, adjustable.
Q3: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce sliding doors, rapid doors, garage doors, rolling shutter doors, cold storage
doors, loading and unloading platforms, door seals, and car locks, industrial fans and other series
of products. We produce parts by ourselves in order to control quality and cost.
Q4: How to install your product, is it difficult?
A: Very Easy to install.
Q5: Which place will use the dock leveler?
A: Factory outlet, Outgoing port of logistics park.
Q6: What's effect of dock leveler?
A: Improve the efficiency of cargo handling, easy to unloading and loading goods.
Why Us:
Excellent quality and Competitive price, OEM is available.
Widely professional exporting experience all over the world.
Our Service:
Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries professional in English.
Working time: 24 hours on line.
OEM is highly welcomed.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
Suggestion:
Please kindly check the packages after you receive the goods, if you got wrong
products/ quality problem/ short q'ty, please get back to us as priority. Please
note that you need to send us pictures of the defective items concerning this,
and we will consider to replace or refund accordingly.
Contact us:
More Products are available in Geajie. They are all in competitive price and of
good quality, just go to our company page to see the details.
If you find or not find the products you need, don't hesitate to let us know.

---
