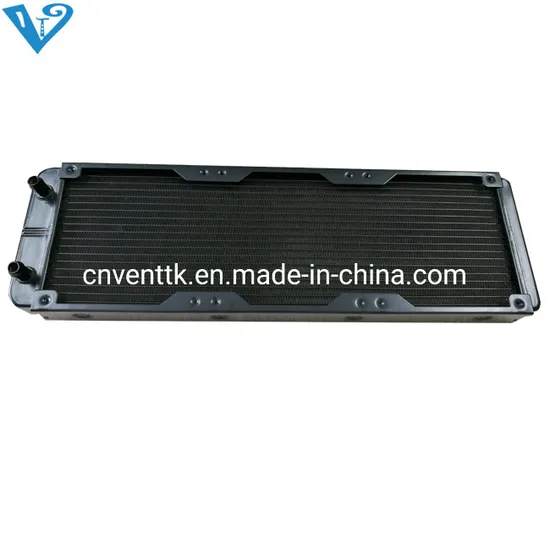

120mm Water Cooling CPU Cooler Row Heat Exchanger Radiator with Fan for PC Wholesale

US$50.00 1 Piece (MOQ)

Basic Info.

Heatsink Material
Copper & Aluminum
Intelligent Temperature Control
Support Intelligent Temperature Control
Noise
Mute
CPU Type
All
Fan Bearing
Ball Bearing
Tube Numbers
8
Multi-Angle
With Multi-Angle
Feature
Cable Management
Tube Diameter
8 and 10mm
Tube Thickness
0.25-1.0mm
Fin Thickness
0.105-0.2mm
Liquid in Tube
Water,Air,Regrigerant,Oil,etc
Refrigerant
R134A.R22.R410A,R407c,Water
Material
Aluminum, Copper
Fan
Axial Fan
Szie
105*105mm
Transport Package
Wooden Box
Specification
Customized
Trademark
Venttech
Origin
China(Mainland)
HS Code
8419500090
Production Capacity
100000PC/Month

Product Description

CPU water cooled radiator catalog
Model Product data Remark
CPU-001 Core dimension:89.5*99*16mm
Outside dimension:131*100*32mm
Installation dimension:82.5*82.5mm
Inlet and outlet:G 1/4 screw thread
CPU-120A-10 Core dimension:116*108*16mm
Outside dimension:156*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
CPU002B-10 Core dimension:116*108*16mm
Outside dimension:156*121*32mm
Installation dimension:105*105mm
Inlet and outlet:G 1/4 screw thread
CPU-003A-10 Core dimension:234*118*16mm
Outside dimension:275*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
CPU-003B-10 Core dimension:234*118*16mm
Outside dimension:275*121*32mm
Installation dimension:105*105mm
Inlet and outlet:G 1/4 screw thread
CPU-004 Core dimension:80*80*16mm
Outside dimension:105*83*26mm
Installation dimension:71*71mm
Inlet and outlet:∅ 8mm
CPU-120A-12 Core dimension:116*119*16mm
Outside dimension:156*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
CPU-120A-18 Core dimension:116*119*16mm
Outside dimension:156*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
CPU-120B-18 Core dimension:116*119*16mm
Outside dimension:156*121*32mm
Installation dimension:105*105mm
Inlet and outlet:G 1/4 screw thread
CPU-240A-12 Core dimension:234*118*16mm
Outside dimension:275*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
CPU-240A-18 Core dimension:234*118*16mm
Outside dimension:275*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
CPU-240B-18 Core dimension:234*118*16mm
Outside dimension:275*121*32mm
Installation dimension:105*105mm
Inlet and outlet:G 1/4 screw thread
CPU-360A-18 Core dimension:354*118*16mm
Outside dimension:395*121*32mm
Installation dimension:105*105mm
Inlet and outlet:∅ 10mm/∅ 8mm
 The inlet and outlet diameter of this model
has two type, Φ8 and 10mm
