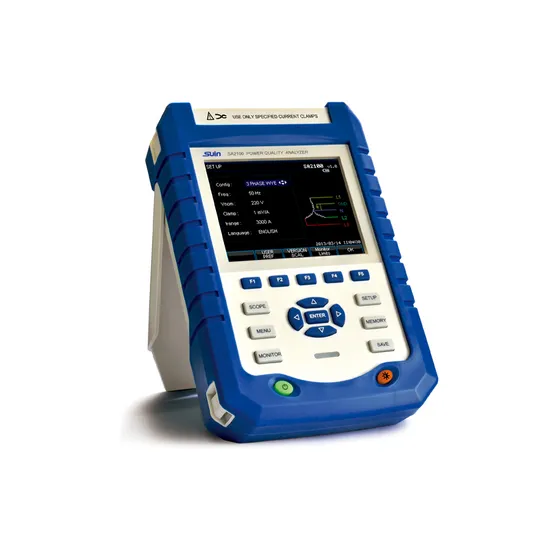

SA2100 Portable Class S Power Quality Analyzer

Product Description

Brief Introduction
SA2100 Power Quality Analyzer is the professional potable device to measure and analyze the power system quality, supply the harmonics analysis and power quality data analysis, also provide big memory for the data storage, which is used to make the long term logger measuring to power system. The PC software can simply upload the data to PC for full analysis. Measurement Modes
1. Scope - View the voltage/current waveform and readings. Cursor Zoom function.
2. Dips & Swells - Capture the abnormal Event, such as Swells, Dips, Interruptions and Rapid Voltage change
3. Unbalance - Check the unbalance in 3 phases based on IEC61000-4-30 standards
4. Transients - Capture waveforms at high-resolution during a variety of disturbances, maximum 100 events, sample rate 20Ks/s
Speficiation

		Measurement Range	Resolution	Accuracy
Voltage/Current/Frequency
Vrms(AC+DC)		1 ~ 1000Vrms	0.1Vrms	±0.5% of nominal voltage
Vpk		1 ~ 1400Vpk	0.1Vpk	±0.5% of nominal voltage
V(Crest Factor)		1.0 ~ >2.8	0.01	±5%
Arms (AC)	10mV/A	0~ 100A	0.1A	±0.5% ± 0.2A
	1mV/A	1~1000A	0.1A	±0.5% ± 0.2A
	50mV(65mV)/1000A	15~ 5000A	1A	±1% ± 2A
A(Crest Factor)		1 ~ 10	0.01	±5%
Frequency		42.5 ~ 57.5Hz (50Hz nominal)	0.01Hz	±0.01Hz
		51 ~ 69Hz (60Hz nominal)	0.01Hz	±0.01Hz
		385~414Hz (400Hz nominal)	0.01Hz	±0.1Hz
Dips & Swells
Vrms1/2		0 ~ 200% of nominal voltage	0.1Vrms	±1%
Arms1/2		1 ~ 3000A	1A	±1% ±2A
Duration		hour-minute-second-microsecond	0.5 cycle	1 cycle
Harmonic(IEC61000-4-7)
Harmonic Number		1 ~ 50
Harmonic Voltage %f		0.0 ~ 100.0%	0.10%	±0.1% ± nx0.1%
Harmonic Current %f		0.0 ~ 100.0%	0.10%	±0.1% ± nx0.1%
THD		0.0 ~ 100.0%	0.10%	±2.5%
Phase		-360° ~ 0°	1°	± nx1.5°
Power and Energy
Active Power/Apparent Power/Reactive Power		1.0 ~ 20.00MW	0.1kW	±1.5±10 digits
KWh		0.00kWh ~ 200GWh	10Wh	±1.5±10 digits
Power Factor		0 ~ 1	0.01	±0.03
Flicker (IEC61000-4-15)
Pst(1min),Pst,Plt,PF5		0.00 ~ 20.00	0.01	±5%
Unbalance
Voltage		0.0 ~ 5.0%	0.10%	±0.5%
Current		0.0 ~ 20.0%	0.10%	±1%
Voltage Phase		-360° ~ 0°	1°	±2digits
Current Phase		-360° ~ 0°	1°	±5digits
Voltage Transient
Vpk		±6000Vpk	1V	±15%
Vrms		10 ~ 1000Vrms	1V	±2.5%
Min. Test Time		50us
Inrush Current
Arms		0~3000Arms	0.1	±1% ± 5digits
Inrush Duration		6s ~ 32min selectable	10ms	±20ms
Logger
Recording		user-defined parameters for 4 phases at the same time
Memory		Data stored in Micro SD card, 8GB
Duration Time		2 hrs to 1 year, depends on the recording items and time interval
Interval		1s to 1 hrs
Monitor
Support EN50160 in default or user-defined standard

Channel(Voltage/Current)			4/4
Voltage Range			1-1000Vrms, 6000V transient voltage
Current Range			depends on supplied current clamp
Micro SD card(bulid-in)			8GB
Battery			NI-MH, 3800Ah/>7h
interface			USB Host, LAN
Screen			5.6' TFT LCD with resolution320*240(SA2100)
Language			10-Chinese, English, French, German, Korean, Polish, Portuguese , Spanish, Turkish, Russian
Dimension/Weight			262*173*66mm/1.6kg
Wire Combinatios			1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE, 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT
Electrical Safety			IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III

Options(CT Clamps)
About SUIN
Shijiazhuang SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc.

---
