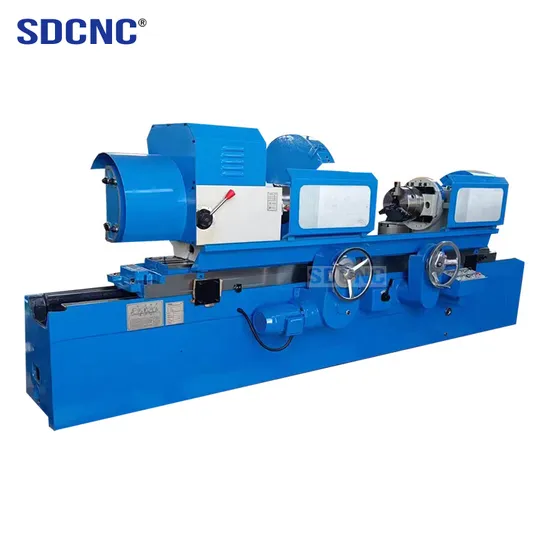

Sdcnc Heavy Duty Crankshaft Grinding Machine M8260*2000 for Engine Repair

Product Description

The main performance characteristics: The screw rod of the machine tool is made of special alloy steel through strict processingand heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency.The grinding head lateralmovement driven by hydraulic motor, which can also be manually.The lifting mechanism and the triangle bracket adopt eccentricdesign, which is easy to adjust, and greatly prolong the service life of the machine tool. Application: Applicable to all kinds ofprocessing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made ofgrinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:

Specifications	Unit	Parameter
Max. swing Dia.	mm	600
Dia. to be ground	mm	Max. 300 Min. 100
Radius of crankpin	mm	Max. 160 Min. 0
Radius of crankpin	mm	150
Center height	mm	420
Max. Grinding Length	mm	1200~ 3750
Max. weight of work	kg	400
Workhead center tapered bore		Morse #6
Tailstock center tapered bore		Morse #6
Wheel spindle motor power	kW	15
Motor power of headstock and tailstock	kW	5
Guide-way dimensions: width x center distance	mm	For wheelhead : 120 x 110 x 360
Max. diameter to be grinded by center rest	mm	Dia.100~300
Max. diameter to be grinded by chuck	mm	Dia.100~300
Auto measuring		without
Suspension type measuring		with
Auto feed and compensation	mm	0.01 ~ 0.04
Min. Manual feed	mm	0.005
Workhead sleeve travel	mm	450
Tailstock sleeve travel	mm	450
Machine size	mm	5000x2100x2130
Gross weight	kg	7500

---
