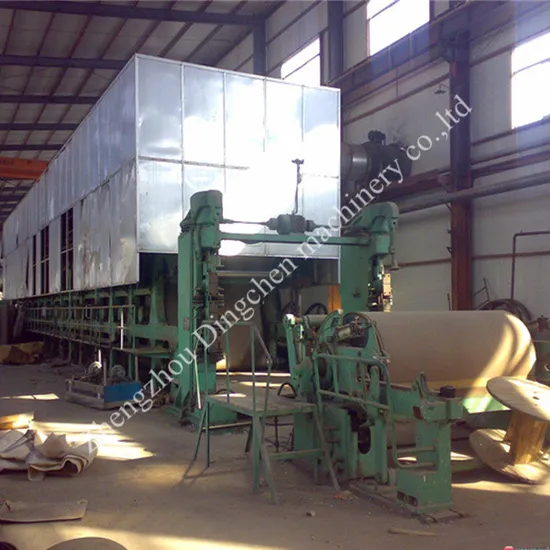

1880mm 15-20tpd Dingchen Machinery Suppling Corrugating Paper Making Machine

Product Description

1880mm 15-20tpd Dingchen Machinery Suppling Corrugating Paper Making Machine
For complete paper making machine, There are THREE Main Parts:
1.Pulping equipment ( Different Raw Material: Waste Paper, Virgn Pulp Board, Mixed Pulp. )
2.Paper making machine ( Different Paper Width, Paper Weight, Production Capacity. )
3.Paper processing equipment ( Different type according to customer's requirement. )
Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.
Technical parameter

1.Raw material :waste paper, wood pulp
2.Output paper:Kraft paper, corrugated paper
3.Output paper weight:120-250gsm
4. Net paper width:2000mm
5.Copper cylinder width:2400mm
6.Capacity: 15-20T/D
7.Working speed :25-50m/min
8.Rail space:2900mm
9.Drive way :Alternating current frequency conversion adjustable speed ,section drive
Main machine structure:
1.Cylinder section:Φ1500mm×2400mm stainless steel mesh 3sets;Φ450mm×2400mm couch roll 4 sets;reverse roll 1 set; rubber Share hardness is 38ºC±2, pneumatic pressure device.
2.Press section: Φ650×2400mm natural marble roll 1set,Φ600mm×2400mm rubber roll 1 set, rubber hardness HSD 95ºC±2. pneumatic pressure device.
3.Dryer section: Φ2500mm×2400mm alloy dryer can 2sets, Φ600mm×2400mm touch roll 1 set, Rubber hardness HSD 95ºC±2. pneumatic pressure device. The second dryer can section is euipped with Inverse press roll Φ400mm×2400mm 1 set, Rubber hardness HSD 95ºC±2.
4.Model design: alloy square frame, section drive, pneumatic pressure device, Alternating current frequency conversion adjustable speed.
Main equipments

NO.	Equipments	Quanty(set/sets)
1	1880mm double-cylinder and multi-mesh kraft paper machine	1
2	dryer can exhaust hood	1
3	axial-flow ventilator	1
4	15 type roots vacuum pulp	1
5	suction box	1
6	three roll calendar	1
7	1880mm winding machine	1
8	Rewinding machine	1
9	frequency conversion controlling cabinet	1
10	work table	1 group
11	2T boiler	1

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
