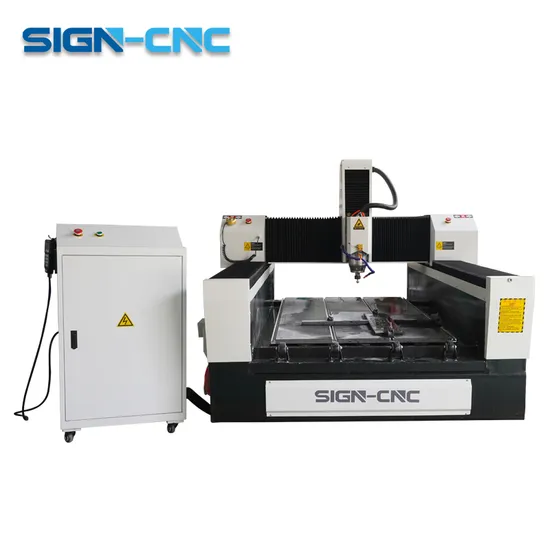

1325 CNC Router 4X8FT Wood and Stone Engraving Machine 3D Carving Machine

Product Description

1325 CNC Router 4X8FT Wood and Stone Engraving Machine 3D Carving Machine
Product Description

Product Description :

Heavy duty type and profiled steel welded lathe bed, stabilizing treated under high temperature for strong bearing capacity Big power 3.2 / 4.5 / 5.5kw water cooling, Low noise high rotated speed (24000rpm) Famous brand Fuling / Delta inverter make spindle working stable Hiwin/TBI brand 25 square guide rails and pinion and rack Continue working after the break point / power failure, lower the rejection rate. Y adopt durable driving by synchronizing wheel consist of belt and gear shaft. Best mechanical and electrical design with well selected brand parts minimize breakdown rate. Overall dust-proof and water-proof design protects all moving parts of machine.

Application industry :

Application:
Tombstone carving, Building Decoration, Wood furniture Industry, Furniture decoration, large scale board engraving, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.

Application materials :

Stone, granite, marble, jade, metal, glass, Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

Technical parameter:

Model	SIGN-1325
X, Y Working size	1300*2500mm
Z feed Height	360mm
Table Surface	T-slot
X, Y Structure	Rack and Pinion, Taiwan Linear Square Guide Rail
Z Structure	Taiwan Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	25000mm/min
Spindle Power	3 or 4.5 KW water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor and driver
Working Voltage:	AC 380V /50/60Hz
Command Language	G code
Control System	NCstudio / Mach3 / DSP
Dustproof	X Y Z axis
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Option	Servo motor Rotary
Warranty	One year

Option parts :

Option parts:
Rotary: Working for cylinder stone materials engraving, diameter different like small 100mm up to big 300 or 400mm dependent on your demand. Servo motor and driver: Famous Japanese Yaskawa or Panasonic servo motor and driver

Samples:

Payment Methods:

Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Packaging & Shipping
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation.
