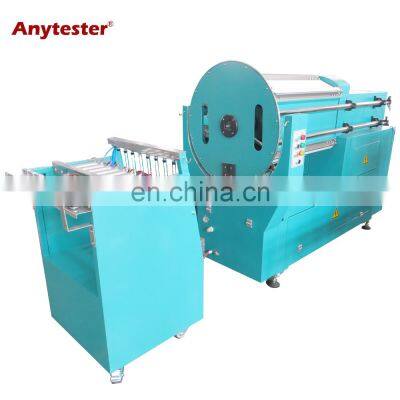

AT241C Automatic Single Yarn Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241C Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Detailed Images
Model
| AT225
|
Warping width
| 200~700mm
|
Warping speed
| 0~3000m/min (frequency control)
|
Warping length
| 1.8~18m
|
Applicable yarn density
| 5~500tex
|
Number of bobbins
| 8pcs (automatically-changeable)
|
Yarn arrangement
| Servo motor control with accuracy of 0.01mm reachable
|
Applicable warp beam diameter
| ¢60mm
|
Applicable warp beam length
| 300~700mm
|
Air pressure required
| 0.4~0.8Mpa
|
Air consumption
| Max. 200L/h
|
Power supply
| AC380V 50Hz, three-phase
|
Dimensions
| 4650×1100×1400mm(L×W×H)
|
Weight
| Approx.1350kg
|
No.
| Item
| Quantity
|
1.
| Main machine
| 1set
|
2.
| Packing list
| 1pc
|
3.
| Quality certificate
| 1pc
|
4.
| User manual
| 1pc
|
★ Touch screen display and PLC control and software for arranging the laying of yarn;
★ Special design for sample weaving in lab or research and development institute;
★ Accuracy of warp displacement reaches 0.01mm;
★ SMC rotating cylinder used for color selection, accurate and reliable to change yarn;
★ AC frequency converter to control yarn winding, online detect winding speed;
★ Frequency converter control beaming mechanism, ensure constant winding speed while beaming;
★ Pneumatic pressuring and damping structure to acquire even yarn tension;
★ Bobbin creel adopts air pressure tension-relaxation-preventing structure; avoid tension relaxation while changing yarn;
★ Automatic warp break stop and yarn double winding stop;
★ Foot pedal for unwinding;
★ With inching and stop button for the safety of operator;
Packing & Delivery
Packaging
|
Size(cm)
| 465(L) * 110(W) * 140 (D)
|
Weight
| 1350Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
