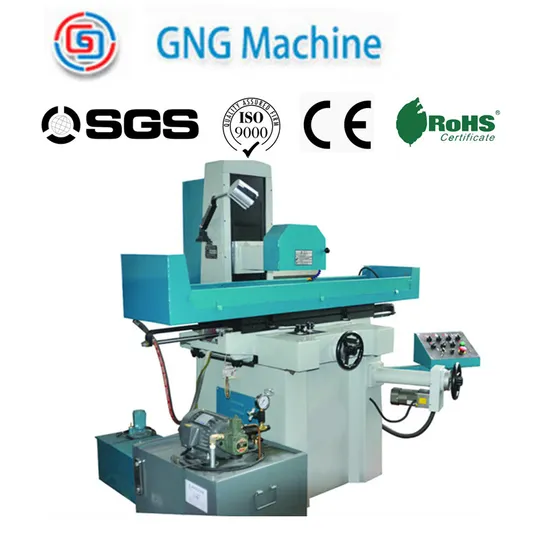

Hydraulic Automatic Precision Grinder Milling Machine

Product Description

Characteristics of machine tools:
The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.

Model				MY1230
Bench	Max.workpiece to be Ground (L×W×H) (×)		mm	700×320
	Maximum travel of table (L × W) (×)		mm	760×320
	Table maximum cutting area (L × W) (×)		mm	760×320
	Number of T -Slot T (×)		mm	1×14
The grinding head	Distance From Table Surface To Spindle Center		m	540
	Wheel Size(dia×width×bore) (WA46K5V) (××)		mm	ø335×30×ø127
	Spindle speeds (50HZ)		r/m	1440
The amount of feed	Table longitudinal (left and right) speed (stepless) ()()		/min	5 25
	Table horizontal (before and after) the amount of feed ()	Continuous (variable speed)()	mm/min	150
		Intermittent (stepless) ()	m/	0 5
		The handwheel rotates	mm	4
		Hand wheel each grid	mm	0.02
	Vertical (up and down) feed wheel feed ()	The handwheel rotates	mm	2
		Hand wheel each grid	mm	0.01
Motor power	Spindle motor		kw	4
	Cooling motor		kw	40
Reversing feeder	Hydraulic motor		kw	1.5
	Working pressure		mpa	3
	Fuel tank capacity		L	80
	The maximum flow		L/min	18
Working precision	The machined surface of the base of parallelism		mm	300/0.004
	Surface Roughness		μm	Ra0.32
Weight of machine	Net		T	2.1
	Cross		T	2.35
Machine Size (L×W×H) (××)			mm	1990×1700×1990

---
