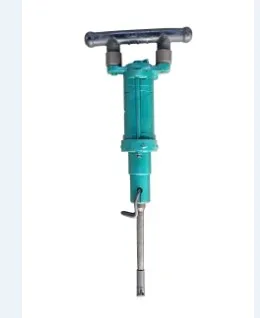

Y10 Hand Held Rock Drill/Jack Hammer/Rock Drill Machine

Product Description

Description:
Model Y10 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Y10 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working, stone trimming, and 2nd splitting blocks.
Product features:

Model Y10 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite. Technical Data

Technical Specifications
Type	Y10
Weight	10 (Kg)
Length	458 (mm)
Cylinder dia	φ50 (mm)
Piston stroke	33 (mm)
Working pressure	0.4~0.5 (Mpa)
Impact frequency	≥51 (Hz)
Air consumption	≤9 (L/s)
Working water pressure	0.2~0.3 (Mpa)
Air pipe inner dia	φ13 (mm)
Drill bit dia	φ20~φ30 (mm)

Our Advantages

Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported through out the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

---
