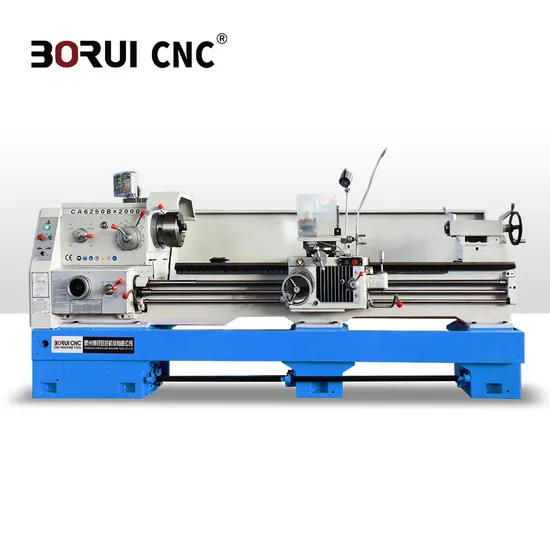

Ca6250b Universal Lathe Machine Bench Lathe Machine for Metal Machine Lathe

Product Description

China Best Sell Advantages 1.5m Lathe Machine For Sell CA6250B Universal Lathe Horizontal China
Product Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application:
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
The main specification :

Specifications		CA6180 CA6180B CA6180C	CA6280 CA6280B CA6280C
Max. Swing over bed		800mm
Max. Swing over carriage		540mm
Max. swing in gap		--	1020mm
Effective gap length		--	210mm
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm. (80mm). [105mm]
	Spindle taper	NO.6(MT6)(Φ90 1:20)[Φ113 1:20]
Feed	Number of feeds	64 kinds(for each)
	Range of metric threads(kinds)	(1-192mm)44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	(0.25-48)Moduie39kinds
	Range of pitch threads(kinds)	1-96DP(37kinds)
Tailstock	Max. tail stock spindle travel	150mm
	Tail stock spindle diameter	75mm
	Taper of tail stock spindle center hole	NO.5(MT5)
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
	Weight for 750mm	2520 2400
	Weight for 1000mm	2720 2560
	Weight for 1500mm	2980 2800
	Weight for 2000mm	3260 3087
	Weight for 2200mm	3490 3287
	Weight for 3000mm	4200 3887
	Weight for 4000mm	4850 4500

Standard Accessories: Optional Accessories: 1. Centers; 1. Quick change toolpost
2. Steady rest (750mm without this); 2. 2-axis Digital readout
3. Follow rest (750mm without this); 3. 4-jaw chuck
4. Foot plate; 4. Grinding head
5. Face plate (CA6140 without this); 5. Tamping attachment
6. 3-jaw chuck;
7. Leading screw guard; (3000mm without this)
8. Toolpost protection;
9. Chuck protection;
10. Cooling system;
11. Work Lamp.
12. Back guard
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools

---
