20 Ton Multifunction Broken Dedicated Crawler Backhoe Excavator

Product Description

Product Application

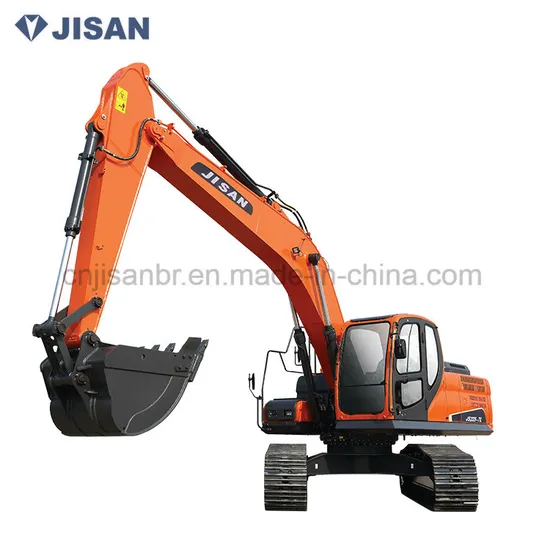

JISAN JS225-7L medium excavator has stable performance and convenient operation. It adopts Japanese Yanmar original engine to meet domestic exhaust emission standards, and installs new cooling fan and large silencer to meet the European noise standard environment-friendly engine. At the same time, take into account the development of urban environmental protection.
Flexible operability is at the heart of the job. The JISAN JS225-7L excavator utilizes the Korean hydraulic system. The driver can distribute the oil evenly according to the operation requirements, so that the power arm, the stick and the bucket can be operated flexibly, quickly and efficiently.
JISAN JS225-7L is more popular in the market. This type of excavator is often used in common earthwork construction, such as foundation excavation, road and railway subgrade construction.

SPECIFICATIONS FOR 20 TONS CRAWLER EXCAVATOR
Specifications	Weight	kg	22020
	Bucket	m³	1.2
	Boom	mm	5700
	Stick	mm	2900
Engine	Engine model		doosan DE08, lsuzu 6BG1
	Rated Power	Kw/rpm	110/1950, 135/1950
	Cooling Methed		water-cooling
Main performance parameters	Rotation Speed	rpm	10.5
	Walking Speed	km/h	5.7/3.1
	Bucket Digging Force	kN	149
	Stick Digging Force	kN	105
Hydraulic system	Main Pump Type		Variable Axial Piston Pump
	Maximum Flow	L/min	2*212
Size	Transport Width	mm	2990
	Transport Length	mm	9506
	Transport Height	mm	3065
	Cab Height	mm	2985
	Tail Swing Radius	mm	2794
	Counterweight Ground Clearance	mm	1096
	Track Length	mm	4440
	Track Width	mm	600
	Track Height	mm	950
	Minimum Ground Clearance	mm	475
Working Range	Maximum Digging Distance	mm	9873
	Ground Maximum Digging Distance	mm	9699
	Maximum Digging Depth	mm	6592
	Maximum Digging Height	mm	9616
	Maximum Loading Height	mm	6830
	Maximum Vertical Wall Digging Depth	mm	3929

---
