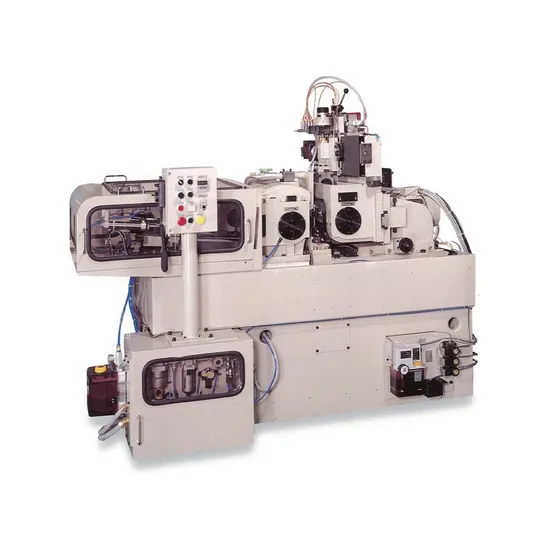

Precision Outer Diameter Punch Grinder Machine Factory Small Cylindrical Grinder Internal and External Tiny Parts Grinding

Product Description

PRODUCT DESCRIPTION There are many different of finishing processes that are valuable in the production of small metal parts. Typically deployed at the end of manufacturing, these processes include methods of high precision internal grinding.

Convenient grinding operation
All the grinding motions, "from rough grinding, dressing, finish grinding to spark out", are fully automatically operated. This provides high accuracy, convenient operation and greatly upgrades productivity. Also, it is excellent for mass production as well as small quantity, flexible workplace grinding.
The precision workhead spindleThe workhead spindle runs on a high precision roller bearing featuring high accuracy, high rigidity and silent running. The workhead can be swiveled at clockwise 7° ~anticlockwise 8°, allowing for grinding tapered workpleces.

The slide tableThe slide reciprocating movement is driven by a hydraulic system, providing variable speed change and superior stability.
NC controlled auto. dressing with compensationIn case a diamond or CBN grinding wheel is applied, a selection of no dressing compensation is available. For hard-to-grind parts, a multiple dressing compensation mode can be selected to ensure the desired grinding quality.

SPECIFICATIONS
Centre Height	mm	180 / 240
Max Grinding Diameter (bore)	mm	100 / 200
Table Speed infintely variable	m/min	0.1 - 4
Max. Table Stroke	mm	250 / 500
Internal Grinding Spindle Dia	mm	60 / 80 / 100
Spindle Speed	rpm	18000 / 28000 / 12500
Grinding Wheel Motor Power	hp	3 / 5
Work Head Speed (stepless)	rpm	20 - 650
Work Head Swivel	deg	0 to 30
Rapid Approach / Auto Retraction	mm	3 - 10 variable*
Auto Spark off time	sec	0 - 60*
