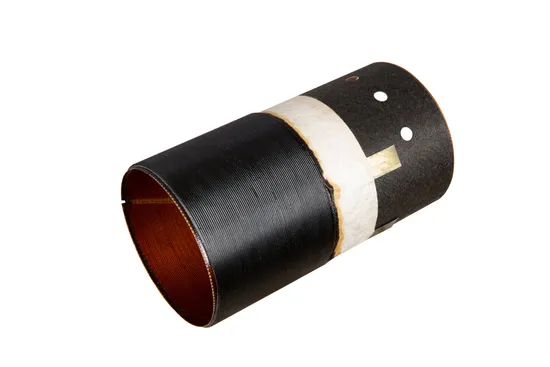

4 Layers Pure Aluminum Wire Winding Voice Coil for High Temperature Application

Product Description

Product Description High temperature voice coils, with excellent materials and precise dimensions
Copper wire
Inside Outside winding style
composite polyimide fiber glass bobbin
widely used professional audio speaker application.
Winding Height:90mm
Former Height:18mm+18mm

Detailed Photos
Product Parameters
Voice Coil Technical Parameters:

Former Height	90mm
Winding Width	18mm+18mm
Outer Diameter	78mm
Innder Diameter	76.2mm
Impedance	5.6 OHM and can be custom-made
Layers	Outside Flat Wire Edge Wound 1 LAYER
Former Material	USA Made Impregnated Fiber Glass
Wire Material/Type	ALR Pure Ribbon Aluminium

Packaging & Shipping Packaging Details
Hot Sale Voice Coil Products
1.plastic tray+carton
2. foam+carton
3. opp bag+box
4. also customize
Port
shenzhen port
Lead time:

Quantity(pieces)	1 - 1000	1001 - 10000	10001 - 50000	>50000
Lead time (days)	3	7	15	To be negotiated

Company Profile ZENITH AUDIO has produced the voice coils more than 20 years with rich experience, the various activities in research and development as well as the use of state-of-the-art technologies make ZENITH AUDIO the leader in this industry. Combined with solid production know-how, this forms the foundation for excellent product quality and opens new paths for future development.
Quality at the highest level - The selection of raw materials can determine the quality of the finished products. ZENITH AUDIO uncompromisingly uses high-quality raw materials from the well-know suppliers to ensure the highest quality from the step. Further processing and mass production applying cutting edge technologies, proposing innovative features for manufacturing equipment and automation technology improvements are part of our daily business. The results are custom-made the top quality products - matching exactly the requirements of the higher demand customers.

After Sales Service
FAQ 1. Question: How to make custom copper coil?
Answer: Please provide the specification, the drawing would be the best.
2. Question: What is the lead time for sample?
Answer: Usually it will take about 3-5 working days.
3.Question: What is the lead time for mass production?
Answer: 7-10 days, depending on order quantity.
4. Question: What is the payment terms?
Answer: T/T, paypal or negociation.

---
