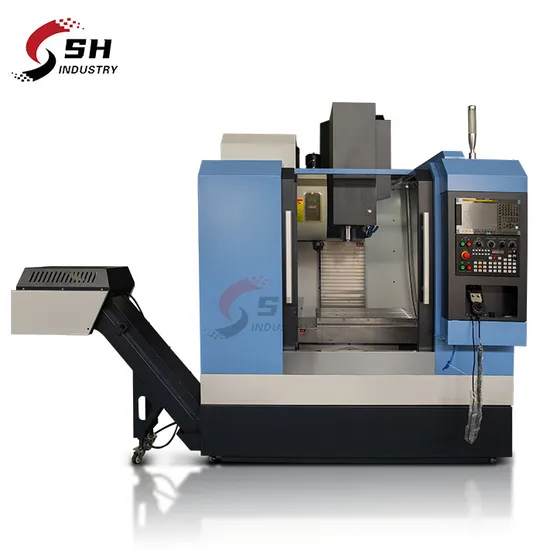

CNC Vertical Machining Center Btmc650 CNC Milling Machine for High Speed Metal Lathe

Product Description

Best Price CNC Vertical Machining Center VMC650 High Speed for Metal Processing CNC Machine Center Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Auto lubrication system
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
Main technical specifications:

Specifications	Units	VMC650
Table size	mm	800x400
X axis travel	mm	650
Y axis travel	mm	400
Z axis travel	mm	500
Max. worktable load	kg	400
T slot(number-width-pitch)		3-18x125
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40
Main motor power	kw	5.5/7.5
X/Y/Z rapid traverse speed	m/min	24/24/20
		(Optional:48/48/36 )
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	469
Distance between spindle nose and worktable surface	mm	100-600
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Tool magazine		16 Armless/(Optional: Arm 24 )
Max. tool diameter	mm	φ90
Max.tool weight	kg	8
Machine weight	kg	4000
Overall dimension	mm	2400x2000x2550

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
