Factory Direct Sale 9ton Lever Block, Manual Chain Hoist for Hand Lifting

US$20.00-80.00 1 Piece (MOQ)

Basic Info.

Model NO.
HSH-B
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Lever Hoist
Sling Type
Chain
Lift Speed
<2m/min
Maximum Lifting Height
1.5
Chain Falls
3
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Capacity
1.5
Net Weight
45kg
Delivery Day
7-30 Days
Running Test Load
112.5tons
Transport Package
Wood Carton
Specification
0.75ton-9 ton
Trademark
WOKAITE
Origin
Zhejiang China
HS Code
84251900
Production Capacity
1000sets/Month

Packaging & Delivery

Package Size
56.00cm * 32.00cm * 23.00cm
Package Gross Weight
47.000kg

Product Description


Product Description

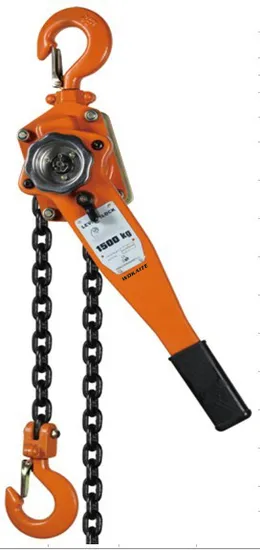

WOKAITE 0.75-9ton HSH-B lever chain hoist features Forged and heat treated load hooks with batch taceability and stretch indicators.Drop-forted load hooks are free to rotate 360 degrees.
Simply select FREE on selector lever and pull the hook down.As long as the hoist is unloaded,the free chaining device serves quickly the right chain length in both directions.
SAFE.Not possible if load is applide!
Double pawl Brake system
MBL of 400% of WLL
HSH-B Series Chain Block Specifications

Model HSH-0.75 HSH-1.5 HSH-3 HSH-6 HSH-9
Capacity tons 0.75 1.5 3 6 9
Standard lift m 1.5 1.5 1.5 1.5 1.5
Running test load KN 9.2 18.4 36.8 73.5 110.3
Effort required to lift rated load N 140 220 320 340 360
Strands of load chain 1 1 1 2 3
Load chain diameter mm 6 8 10 10 10
Net weight kg 7.7 11 21 32 46
Packing measurement cm 36×12.5×16 50×13.5×19 54×17×21.5 54×18×21.5 56×32×21.5
Extra weight per metre of extra lift kg 0.8 2.15 2.2 4.3 6.45

Welcome to send us an inquiry, we will provide you with more accurate product information.
