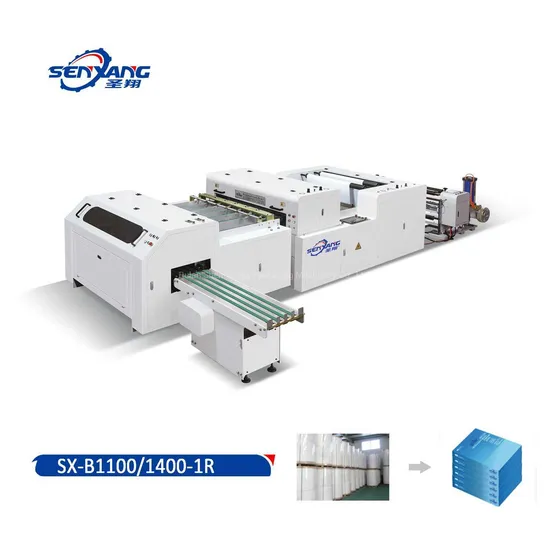

Sx-B Office Copy Paper Making Machine for A3/A4 Size. Automatic Cutting Machine. Paper Sheeter Machine

Product Description

About Shengxiang Ruian Shengxiang Packaging Machinery Co., Ltd. was established in 2010. It is a private economic entity integrating development, design, production, sales, and service. Mainly specializing in the manufacture of packaging equipment such as cross-cutting machines, A4 paper cutting machines, slitting machines, roll paper cutting machines, rewinding machines, printing machines, and so on.

Specification

Model	SX-B1100-1R	SX-B1400-1R
Cutting Width	1060 mm	1360 mm
Min Vertical Cutting Width	50 mm	50 mm
Max Diameter of Material	φ1400 mm	φ1400 mm
Length of Cutting	30-400 mm	30-400 mm
Cutting Speed	20-150 times/min	20-150 times/min
Cutting Precision	±0.2 mm	±0.2 mm
Total Power	9.5 kw	11 kw
Weight	4500 kg	5000 kg
Overall Size (L x W x H)	7500*2200*1400 mm	7500*2500*1400 mm

SX-B1100/1400-1R A3 A4 Size Paper Cutting Machine Feature and Characteristic This machine suitable for Cutting all kinds of office paper, high-gloss paper, and paper-plastic composite packaging materials such as roll cutting. 1.The machine adopts PLC touch screen control, servo motor control fixed-length cut.
2.Transmission system using pneumatic, photoelectric sensors, and other centralized control, the machine collecting light.
Electric. Gas integration, easy operation, high cutting accuracy, mechanical stability, low noise, and other advantages.
3.Motor frequency control, automatic counting, alarm parking, magnetic powder tension control. Longitudinal multistage cut, waste edge automatically removed by the fan.
4.Multi-roll at the same time horizontal and vertical cut.
Machine Details

Automatic Loading Unit 1. Pneumatic feeding system, suitable for your large roller material 2. Automatic photocell EPC system	Magnetic Tension Control 1. Tension Magnet adopts 10KG/20kg controller, to keep your paper flat and double side under the same tension. (Optional shaft less lifting)

Paper Collect Part 1. Round knife cutting and cross-cutting the paper into A4 size. 2. Adjustable baffles to keep sheets collect neatly.	Three Stage Conveyor 1. Quantity setting to convey the lower stage 2. Convey outside from right side, waiting to package by manual.

Packaging Details
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty We PromiseCommissioning services: Product arrived on-site, Our Technical Staff Will Guide you to Finish installation,commissioning, andtraining How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provide comprehensive technical training if necessary Training Include as following:(1) Normal operating procedures for equipment training.(2) Knowledge of routine maintenance on equipment training.(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipmentupgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract, the technical parameters,commissioning acceptance of a single report, the relevant technical drawings.
Exhibition
Certification
FAQ
1. Are you a factory or trading company?We are an actual factory and manufacturer with trading in the line of paper cutting machines, slitting machines for more than 10 years.2. Where is your factory located? How can I visit there?Our factory is located in Ruian City, Zhejiang Province, China,
less than one hour by air from Shanghai. All our clients from home or abroad, are warming welcome to visit us!
3. What about your payment term?
For new customer, our payment terms are 30% T/T in advance before production, the balance of 70% should be paid before delivery.
4. Where is your main market?
Our products are sold well in 30 provinces and have a good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle, and South America, Africa, and other countries all over the world.
5. How does your factory do regarding quality control?
Quality is our soul of the company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification. 6. What about a warranty and do the engineers available overseas? One-year warranty. During this period, if some parts were a problem, we will send by courier to you. 7. What about the after-sales service? We provide the whole life after-sales service. Even after one year warranty, we support the spare parts price without benefit.

---
