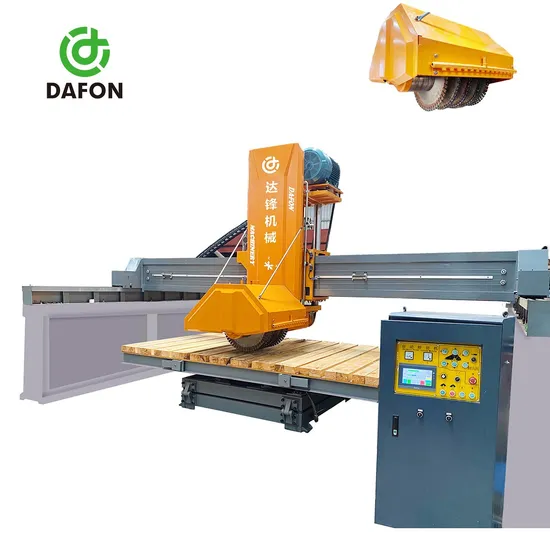

Multi Blade CNC Bridge Saw Stone Slab Cutter Granite Block Cutting Machine for Processing Paving Stone, Kerbstone, Cobblestones

Product Description

Product Description

Multi-blade Bridge Cutter is improved and upgraded based on the regular bridge cutting machine.lt uses PLC to control multiple saw blades for simultaneous cutting. it can use up to 7 saw blades with a diameter of 800mm. The trolley can rotate 90°, which saves the cutting process and greatly improves efficiency. Production efficiency, heavy-duty beam, and higher-power motor make multi-piece cutting more stable and efficient, suitable for cutting paving stones, kerbstone, and cobblestones

Performance Features

High output: Up to 7 saw blades with a diameter of 800mm can be used for simultaneous operation, greatly increasing output.
High cutting accuracy: Using microcomputer program control(PLC) and laser line blade setting technology, high-precision cutting can be achieved, ensuring product quality and accuracy.
Good stability: The heavy-duty beam, higher-power motor, and heavy-duty trolley can ensure the smoothness and reliability of cutting

Technical Parameters

blade diameter			600-800mm
up and down range			550mm
worktable size			3200 × 2000mm
max cutting depth			250mm
worktable tilt degree			0-85°
worktable rotating degree			0-90°
water consumption			5m³/h
motor power			37kw
weight			13500
Blade number			7pcs
Effective shaft length			600mm
Dimension			6300 × 4700 × 3800mm

Main Parts of the Machine

1. Motor: branded motor in China providing stability while cutting
2. Hydraulic station: seven ocean hydraulic system from Taiwan
3. Cement foundation or metallic foundation optional
4.Worktable size: 3000*2000*700mm
5.Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt
6. Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
7. Inside details: 8 rotation wheels inside the worktable, not 6
8. Infrared line to show the cutting path which ensures precise cutting and high cutting quality

Feedbacks

After Sales Service

We provide skilled and richly experienced technicians for installation and after-sales service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

About Us

Dafon is a professional comprehensive stone processing equipment manufacturing enterprise integrating design, development, manufacturing, and sales services. We help stone processing companies around the world carry out integrated design, digital transformation, and intelligent transformation of production lines, and empower stone processing companies with high-quality development using digital technology.

Packaging & Loading

Related Products

Exhibition Show

Our Certificate

FAQ

Q. How about the quality of the machines?
A. We have our own experienced QC. All machines are manufactured strictly according to the national and international standards. Our machines will be strictly inspected and controlled before delivery.
Q. What is the MOQ?
A. One set machine
Q. Do you offer free samples?
A. Normally we do not offer free samples. But further solutions will be discussed respectively upon request.
Q. If we need technical support, can you offer us?
A. Sure, we have a pre-sale and after-sale service team to offer technical support, Well-trained salespersons and engineers are always ready to respond to your technical doubts.
Q. Are you a manufacturer or trading company?
A. We are a professional stone machinery manufacturing company. We have our production team and R & D team.
