High-Quality Drill Point Die for Efficient Threading Solutions

US$150.00-200.00 1 group (MOQ)

Basic Info.

Model NO.

High speed steel drilling tail mold

Processing Method

Forming Mould

Technics

Forming Die

Process Combination

Single-Process Mould

Manufacturing Technology

Automation Technology

Driving Motor Type

Hybrid

Mold Cavity Technology

The Traditional Forming Electrode Machining

Milling Speed

Normal Speed

Parts Detection Method

Measurement of Three Axis NC

After-sales Service

Life Service

Transport Package

Carton Packaging

Specification

20*31.75*35mm

Trademark

GuoshanJM

Origin

Suzhou Jiangsu China

HS Code

8207209000

Product Description

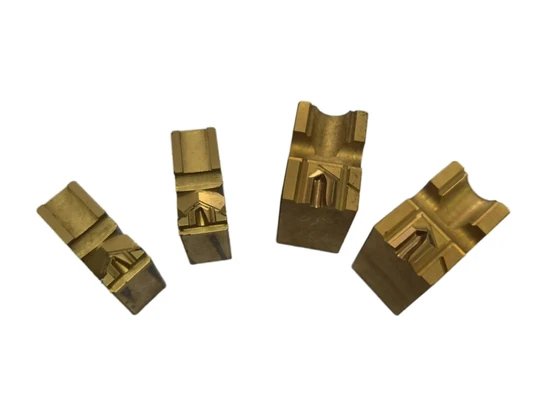

The drill tail mold is a specialized forming mold that plays a crucial role in shaping screw rods and screw necks with precision. Primarily utilized in drill tail screw forming machines, this mold is crafted from robust hard alloy steel, such as tungsten steel. Its exceptional hardness and wear resistance make it an indispensable tool in the fastener processing industry, ensuring durability and superior performance in various applications.

Die Style	A	B	E	F	G
Style I/MA	31.75	12.70	24.40	11.4	10.7
Style II/MB	31.75	20.00	35.00	18.0	10.7
StyleIII/MC	45.00	30.00	35.00	16.0	16.0
