| Tech Spec | |

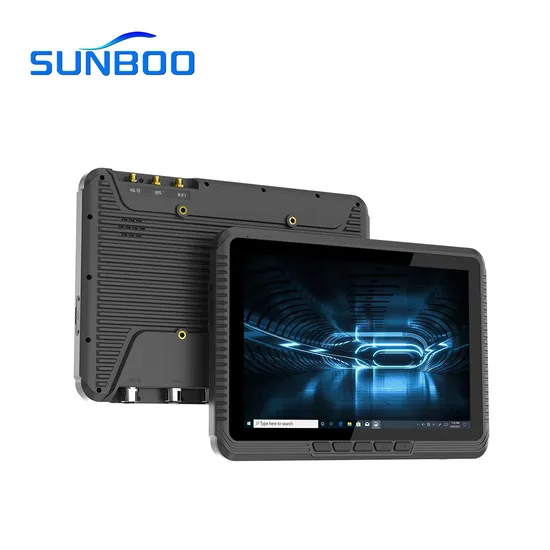

| Product Form | 8 inch Vehicle-mount Terminal |
| Material | - |
| Dimension | 218.1*154.5*23.0 mm |
| Weight | 620g |
| Product Color | Black |
| CPU | Intel JASPER LAKE N5100 Max 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 4GB LPDDR3 ROM 64GB EMMC Optional: 8GB, up to 16GB Optional: 128GB, up to 512GB |
| Operating System | Windows 10 Home Optional: Windows 10 IOT Windows10 Pro |
| Display | Type: LCD Size: 10.1 inch 16:10 Resolution: 800*1280 IPS Brightness: 700cd/ |
| Touch Pannel | 5-point tempered glass capacitive screen G+G, hardness 7H |
| Buttons | Power *1 Volume Adjustment Key (+) *1 (F1 Key) Volume Adjustment Key (-) *1 (F2 Key) Customizable *1 (F3 Key) Customizable *1 (F3 Key) |
| Indicator Light | 1. Power indicator (blue when starting) 2. Charging lamp (red when DC is powered on) 3. Full charge indicator light (green when full with battery, not on when no battery) |
| Speaker | 1.5W *1, Single horn (Maximum 2W) |
| Microphone | Single MIC |
| RTC | Built in 2032 RTC dry battery |
| Battery (Tablet) | Optional, Built in polymer lithium ion battery 1000mAh/7.4V 30 mins (50% volume sounds, 200 nits brightness, 1080P HD video display by default), It is used to support normal power off and protect user data. |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance: 10m |
| 4G | Optional, South America or North America module, LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
| GPS | Built in, Ublox 7 supports GPS, GLONASS Optional, Huada Beidou/Ublox M8Q |
| NFC | Optional, NXP300 |
