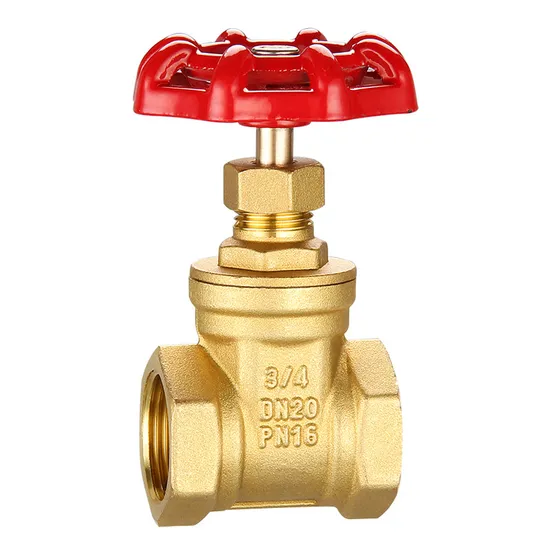

| Item No. | AS-011 |
| Body Material | Brass,Hpb57-3,Hpb59-1 |
| Port Size | 1/2"-4" |
| Connection End | Thread |
| Working Pressure | 1.6Mpa-2.5Mpa |
| Female Thread Connections Comply With | ISO 228, NPT, BSP |
| Handle Color | Customized |
| Working Temperature | -10ºC ≤ t≤ 120ºC |
| Nominal Pressure | PN16 |
| Medium | Water, oil, gas |
| Certified: | CE |
| Leakage | 100% Testing |
| HS Code | 8481804090 |
| Surpace | Natural Color,Nickel plated, chromed |
| Delivery Way | By sea: Asia: 7~10 Days from China to local Port .Other country: wintin 30~35days to Local port .By Air,By Express: within 3~5 days to customers office or home .We offer one-stop services to your address or local port; EXW-Term, Shipping via specified forwarder and shipping company |
| Perment terms: | 30% deposit ,70% against copy of BL |
| Packing: | polybag+white inner box+outer carton+pallet |
| Samples | With our current mould , samples can be offer within 10days after confirmed ;ODM with customers drawings or samples: it will take 20 days to make new mould and offer samples |
| Handwheel | Iron |
| Gaskets | Brass,Hpb57-3 |
| Gland Nut | Brass,Hpb57-3 |
| Packing | carton |
| Bonnet | Brass,Hpb57-3 |
| Clip Ring | Brass,Hpb57-3 |
| Stem | Brass,Hpb57-3 |
| Wedge disc | Brass,Hpb57-3 |
| Body | Brass,Hpb57-3 |
| Package size per unit product | 44.cm * 34.cm * 24cm |
| Gross weight per unit product | 18kg |
