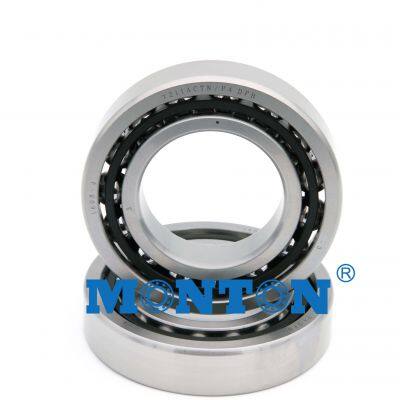

B7034-C-T-P4s Super Precision Angular Contact Ball Bearing

Product Description

Product Description
NameAngular contact ball bearing
SeiresB70
BrandMONTON
ModelB7013-C-T-P4S
Contact Angle15°
d65
D100
B18
Ring MaterialGcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2
Cage MaterialNylon/phenolic resin
r smin1.1
r1smin1.1
ra max1
rb max0.6
Etk nom.78.1
Load rating Cdyn40kN
Load rating C0stat35.5kN
Attainable speed /Grease13000
Attainable speed /Oil20000
Sealedas customer requested
Weight0.42KG
Bearing ArrangementU/DB/DT/TBT/QBC/DU/QU ect.
Design StructureAngular contact
PrecisionP4,P5 or as customer requested
VibrationZV1, ZV2, ZV3, or as customer requested
ClearanceC0, C2, C3, or as customer requested
Quality standardISO9001: 2000/SGS
Packagesingle box
OriginalLuoyang
ServiceOEM
Delivery dateAccordingly
ApplicationSpindle,Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery,air compressor,shippiing.logistic,areospace

Monton bearing was established in 2001 seated in Luoyang--"Ancient Imperial Capital and Peony Flower City",we focusing on the bearing field for more than 20 years and we specializing in the development of "High-tech, High precision, Advanced, Non-standard" bearings.Monton's mission has been and will continue to be to provide customers with complete integrated solutions, including design and development, manufacturing, testing and evaluation, and second-to-none after-sales service.
Monton bearing is mainly engaged in the production of the angular contact ball bearing,High precision crossed roller bearing,Thrust bearing stacks and TC radial bearings,Low temperature,The section ball bearing,Cylindrical roller bearing,Spherical roller bearing,Thrust roller ball bearings and harmonic drives bearing and the customized non-standard bearings.
We made outstanding contributions to the important scientific research projects of many well-known universities such as Zhejiang University, Harbin University of technology, Beijing University of science and technology, Beijing Jiaotong University and China University of petroleum and won high praise from users.
We have batch production on high-grade bearing products and components with an inner diameter of 0.6mm to an outer diameter of 5m. Our products have been widely used in Machine tools,Weapons,Oil drilling,Cryogenic pumps, Mining, Metallurgy,Port machinery, Medical treatment,Extruder gearboxes,Cement,Textiles,Industrial robots, Harmonic drives, Paper machinery, Concrete mixers, Rolling mill and national defense industry field.
With advanced production equipment and perfect testing technology, MONTON can guarantee the quality and accuracy of the products we produced. Our technical department can efficiently complete the bearing design according to customer needs, and customers who need non-standard bearings can also enjoy customized services. Our quality system regularly monitors various production facilities and complies with strict quality requirements. All material certificates and certification reports are kept in files. Products are traceable and can be provided on request. Therefore, we are confident to provide the best solutions for global customers.
We are innovative, motivated and courageous to provide our customers with necessary solutions. Our management and employees are always ready to provide professional and personalized services to our customers. In the future, MONTON will adhere to the brand development strategy, strengthen the research and development of high-end products, strive to build a digital factory, and join hands with more partners to work together for a better future!
Company spirit: Honesty, Trustworthiness and Mutual benefit;
Company policy: Quality-oriented;
Company Business philosophy:Honesty;
Company principle: Solve customers problems and maximize customer benefits!
