Air Compressor Tank Double Circular Seam MIG Automatic Welding Machine

Product Description

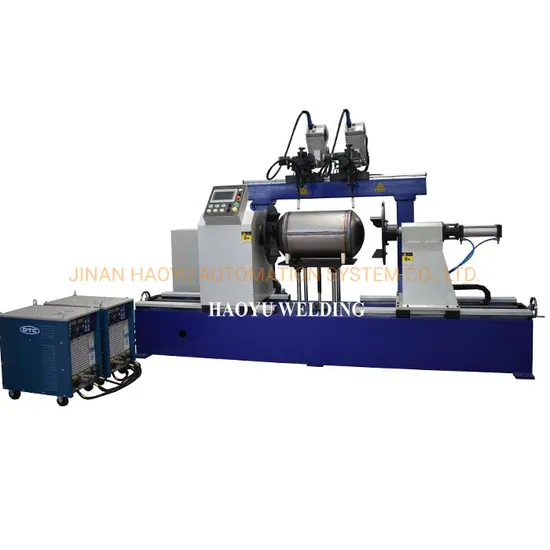

Air compressor tank double circular seam MIG automatic welding machine
Perform the automatic welding for the circular seams on the inner tank of water heater. Ensure the location dimensions of the workpiece uniform, positioning automatically, convenient and reliable to use, welding quality meets the requirements, clamping fast and convenient.
Automatic Welding Machine Specification Automatic welding machine can weld stainless steel and carbon steel water heater. Welding torch is fixed while workpiece rotating. Welding position is horizontal. The workpiece is clamped tightly by fixture at two ends and rotates. Two welding torches and two power sources work simultaneously to improve work efficiency. PLC is adopted to control the machine to run and speed is adjusted by AC servo, which can improve the reliability of the equipment. Adopts end face positioning and pneumatically clamping mode. Human-machine interface to alter the parameters. The welding time and weld length can be set via the interface. The alteration of the parameters can be input through the touch button conveniently and timely. Parameters can be stored and called. Automatic dust-extraction device to purify the environment.
Welding Machine Parameters

Applicable diameter	350mm-1000mm
Applicable length	1000mm
Thickness	0.8mm-2mm
Welding torch moving range in left-right direction	100mm
Welding torch lifting range	100mm
Welding torch moving range in front-rear direction	50mm
Control system	Japan OMRON PLC

Jinan Haoyu Automation system Co., Ltd (another name is Jinan Haoyu CNC Machinery Co., Ltd) is a high-tech private company located in Jinan City ,Shandong province. We have been a professional manufacturer in the field of welding automation over 17 years.
Our products mainly include automatic welding machine, robot welding station, automatic pipe cutting machine, automatic material handling equipment, automatic assembling machine,these machines are widely used in the areas of automobile,construction machinery, railway vehicle, electric power, shipbuilding, pressure container, petrochemical, house appliances and military industry, etc.
We established a long-term cooperative relationship with more than 60 countries and regions, such as Canada,Italy,Australia,United States,India,south America.Our welding machines are recognized by customers with quality and excellent service.the company have obtained CE and ISO certification .
With strong R&D staffs and Strict QC&QA team,so can design and produce as customers' requirements.Our sales team provide perfect support from Pre-sale and after-sale, in-sale.Technology Improvement and perfect products are the eternal pursuit of the company.
Welcome to visit us at any time!

---
