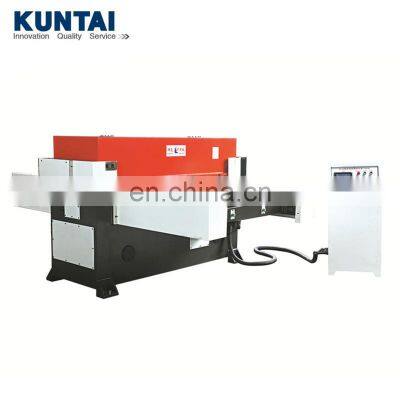

XCLP3 Four-column Auto Balance Hydraulic Sponge Cutting Machine

Product Description

Product Description
XCLP3 Four-column Auto Balance Hydraulic Sponge Cutting Machine
Double Side Automatic Hydraulic Cutting Machine
Product Description
Usage and characteristics
1. The sponge cutting machine is mainly suitable for cutting various nonmetal materials,such industries as sponge/foam, plastics packing,pearl cotton packaging,rubber and prining etc.
2. PLC contrl systerm,easy to operate.
3. Saving labour.Only need two people to operate it.
4. Small motor,small oil pump.Save electric and oil .Equipped with lubricating system to lessen wear and prolong service life.
5. 24V low power special control system.
6. Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
7. Different height products can be manufactured at same time.
8. Products of special specifications can be customized.
Main Technical Data(Customizable)

Model	XCLP3-400	XCLP3-500	XCLP3-600	XCLP3-800	XCLP3-1000
Cutting Force	40T	50T	60T	80T	100T
Tension Distance(mm)	50-200	50-200	50-200	50-200	50-200
Cutting Area(mm)	1400*610	1400*800	1400*900	1400*900	1400*900
Main Motor Power(kw)	3	4	5.5	7.5	7.5
G.W(kg)	2500	4000	6000	7300	9000

Machine Advantage:

1. Controlled by PLC, electric box, human-computer interface, easy to operation.

2. The main machine adopts double oil cylinder, double-crank connecting rod balance, four-columns, which can guarantee the cutting depth at every cutting position is the same.

3. The pressing board carries out slow cutting when it presses down to contact the die cutter, which can make that there is no size error between the uppermost layer and lowmost layer of cut material.

4. Single-side or double side auto feeding system for choosing, which can improve the producting capacity.

5. Die cutter pueumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.

Machine Pictures
Application For Cutting Machine:
Customer visiting & Exhibition
Packaging & Shipping
Inner Package: Protective Film, etc
Outside Package: Plywood Case
Machines well packed with protective film and loaded in plywood case or export container;English version operation manual and technical data;One-Year-Period wear parts;Tool kit
