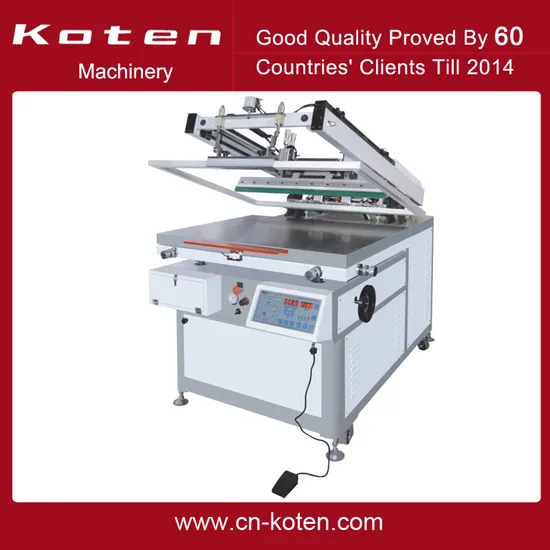

High Precesion Screen Printer (JB-8060A)

Product Description

Process.
A. UV ink.
B. Ink return scraper
C. Design of printing logo
D. Silk screen
E. Frame
F. Printed material
Features:
1. Printing course is controlled by servomotor(suitable for printing high glutinosity ink)
2. It is easy to acquire high precision printing products due to synchronized operation of the instant off-network structure and scraper.
Main Specifications.

Max. printing dimension	800x600mm
Max. dimension of the frame(outside)	1100x1000mm
Min. dimension of the frame(outside)	600x550mm
Max. printing speed	16pcs/h
Height of instant off-network	0-25 mm
Use level of compressed air	12L /min
Skewness of the scraper	0-30°
Standard height of the workbench	900±25mm
Air pressure	0.4-0.6mpa
Weight	550Kgs
Dimension of workbench	900x800mm
Printing thickness	0-55mm
Power	2.2kw

Koten Machines Loaded Into Container At the Ningbo Port.
Koten Brand Machines In The Clients' Factory.

---
