Jwell China HDPE Plastic Water Storage Tank Drum Barrel Container Extrusion Blow Molding/Moulding/Making Machine Manufacturing with High Quality

Product Description

Product Description
JWELL-BM30/50/100/160 Blow Molding Machine
1.Suitable for producing 15-100L different size jemycan,open-topbarrels and others chemical packaging products.
2.Adopt high output extrusion system,accumulating die head..Optional view strip line system.
3.Optional hydraulic servo control system.
4.ptional double layer co-extrusion system.

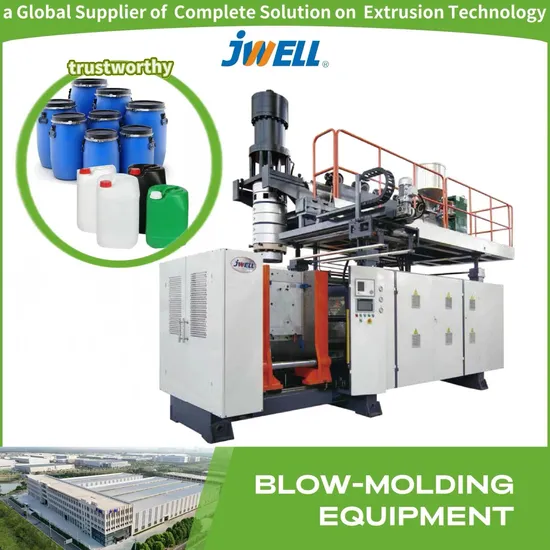

Product photos
Performance and advantages
1.Suitable for producing different kinds of road pyramid, logisticinsulation barrels.
2.Optional bottom sealing, product eject, core-pulling movementelements.
3.Adopt high output extrusion system, accumulating die head.
4..Optional Hydraulic Servo control system. Technical parameters

Technical parameters
Model	Unit	JWELL-EBM-30D	JWELL-EBM-50D	JWELL-EBM-100D	JWELL-EBM-160D
Max product volume	L	30	50	100	160
Die head structure	--	Accumulating Type
Main screw diameter	mm	80	90	100	100
Max plasticizing capacity (PE)	kg/h	120	180	190	240
Driving motor	Kw	37	45	55	90
Accumulating volume	L	5.2	6.2	12.8	18
Oil pump motor power(Servo)	Kw	22	30	30	30
Clamping force	KN	280	400	600	800
Space between platen	mm	400-900	450-1200	500-1300	500-1400
Platen size W*H	mm	740*740	880*880	1020*1000	1120*1200
Max.mould size	mm	550*650	700*850	800*1200	900*1450
Heating power of die head	Kw	20	28	30	30
Heating power of die headMachine dimension L*W*H	m	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4.0	7*3.5*4
Machine weight	T	12	13.5	16	20
Total power	Kw	95	110	135	172
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

Company Profile
JWELL is a global supplier of complete solutions on extrusion technology.
Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world. Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. Based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.
