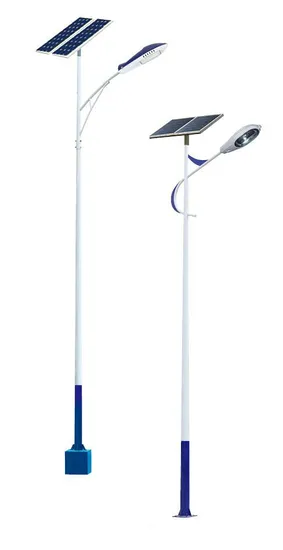

8m/9m/10m 80W/100W/120W Single Arm LED Solar Street Light for for Roads Squares Parks

Product Description

Product DescriptionEdobo is committed to providing high-quality, reliable, and eco-friendly solar street lighting solutions. Our lights utilize the power of the sun to illuminate streets, pathways, parks, and more, contributing to a greener and more sustainable future. The key to our product's performance lies in its ingenious working principle and the premium components we use.
Detailed PhotosUnique Integration Design
Easy to transport, install and maintain
Rotating Lamp bracket
Lamp bracket can be adjusted in vertical and horizontal direction
Charge and Discharge Management
Protect battery by software and hardware, supporting battery charge at 0V
Light Efficiency Management
High efficiency led chip, up to 210lm/w
Infrared sensor
More intelligent, energy-saving
Battery Program Updated
Embedded single string control technology. More stable and longer lifespan.Solar Energy Collection (Daytime): During the day, Edobo's high-efficiency solar panels capture sunlight and convert it into direct current (DC) electricity. The panels are strategically positioned to maximize sun exposure throughout the day. Energy Storage: The DC electricity generated by the solar panels is then stored in Edobo's high-cycle lithium batteries. A solar charge controller manages the charging process, preventing overcharging and ensuring the longevity of the battery. Automatic Illumination (Nighttime): As darkness falls, a light sensor (usually a photocell) detects the decrease in ambient light. This triggers the control system to automatically draw power from the batteries and illuminate the LED lights. Intelligent Control: Edobo solar street lights often incorporate intelligent control systems. These systems can:Dimming: Reduce light output during periods of low activity to conserve energy and extend battery life.Timing: Program specific on/off times or dimming schedules based on local needs.Motion Sensing: Increase brightness when motion is detected, providing enhanced security.Remote Monitoring: allow user to remote turn on/off light, set up lighting mode.
Motion-Activated Brightness-Sensor Technology (for your option): Our integrated motion sensors detect the presence of pedestrians, cyclists, or vehicles in the vicinity of the light.Upon detection, the light instantly ramps up to 100% power, providing bright, clear illumination for enhanced safety and visibility.Once the motion is no longer detected for a set period (programmable), the light automatically dims back to its low-power standby mode, conserving energy.Sensor Range: The motion sensor have a range of 8-10 meters in the horizontal direction and 3-5 meters in the vertical directionSensor Angle: 120 degree Time-Based Brightness Control (Smart Controller): Our intelligent controller allows for customized lighting profiles based on the time of night.Peak Hours (e.g., Dusk to 10 PM): The light operates at a higher power level to provide optimal illumination during the busiest hours.Midnight Hours (e.g., 10 PM to Dawn): The light automatically dims to a lower power setting, reducing energy consumption when traffic and pedestrian activity is minimal.Programmable Schedules: These time-based brightness levels are fully programmable to match specific local needs and energy saving goals. For example, the user can configure it to full power from 6pm-10pm, 50% power from 10pm-2am, 20% power from 2am-6am, etc. Benefits of Smart Control Maximum Energy Efficiency: Reduces energy consumption by only using full power when needed.Extended Battery Life: Lower power consumption during off-peak hours extends the lifespan of the lithium batteries.Enhanced Security: Brighter light upon motion detection deters crime and improves safety.Customizable Lighting Profiles: Allows for tailoring the lighting to specific location needs and preferences.Reduced Light Pollution: Lower light levels during off-peak hours minimize light pollution.Optimized Resource Utilization: Using energy only when and where needed optimizes our renewable resource usage.
Different pattern for your option How Solar Street Lights Work: Harnessing the Sun, Illuminating the Night
Solar Energy Capture
During daylight, high-efficiency photovoltaic (PV) panels convert sunlight into electricity.
Advanced monocrystalline silicon cells ensure up to 23% energy conversion efficiency.
Energy Storage
Electricity flows to a built-in lithium-ion battery system for storage.
Smart charge controllers prevent overcharging and optimize battery lifespan (5-7 years).
Automatic Activation
A built-in light sensor (photocell) detects dusk, triggering the LED lights to turn on.
Motion sensors (if equipped) adjust brightness based on movement detection.
Efficient Illumination
Ultra-bright LEDs consume minimal stored energy while providing uniform lighting.
Optics-designed reflectors maximize light distribution without glare.
Self-Sustaining Cycle
The system resets at dawn: lights turn off, and panels restart energy harvesting.
Even on cloudy days or rainy day, 1-2 days of sunlight can power 3 nights of operation.
Product Parameters

	6M 30W	8M 60W	10M 80W	12M 100W
LED Street Light	Power: 3 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 3 0 Lm/ w Voltage: DC1 2 V Color temperature:2 7 00 - 65 00 K Color Rendering index: Ra> 7 5 IP rating: IP6 5	Power: 6 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 3 0 Lm/ w Voltage: DC2 4 V Color temperature: 2 7 0 0 - 6 5 0 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 5	Power: 8 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 3 0 Lm/ w Voltage: DC2 4 V Color temperature:2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 5	Power: 1 0 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 3 0 Lm/ w Voltage: DC2 4 V Color temperature:2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 5
solar panel	Power: 1 2 0 W Operation Voltage : 1 8 V Operation Current :6 . 67 A Open circuit voltage: 2 2 V Short circuit current: 6 . 7 5 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 %	Power: 1 2 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 6 . 67 A Open circuit voltage: 2 2 V Short circuit current: 6 . 7 5 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 %	Power: 1 5 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 8 . 4 A Open circuit voltage: 2 2 V Short circuit current: 8 . 8 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 %	Power: 2 0 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 1 1 . 1 2 A Open circuit voltage: 2 2 V Short circuit current: 1 1 . 4 6 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 %
Option 1: Gel Battery	Rated Capacity: 1 0 0 AH Rated Voltage: 1 2 V Deep Cycle Maintenance Free	Rated Capacity: 1 0 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free	Rated Capacity: 1 2 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free	Rated Capacity: 1 5 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free
Option 2: Lithium Battery	Rated Capacity: 7 2 AH Rated Voltage:12 . 8V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0	Rated Capacity: 7 2 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0	Rated Capacity: 8 4 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0	Rated Capacity: 1 0 2 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0
Solar Controller	Rated Voltage: 1 2 V/ 2 4 V Rated Current: 1 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection	Rated Voltage: 1 2 V/ 2 4 V Rated Current: 1 5 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection	Rated Voltage: 1 2 V/ 2 4 V Rated Current: 2 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection	Rated Voltage: 1 2 V/ 2 4 V Rated Current: 2 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse connection
Street Light pole	Height: 6 m Top/ Bottom Diameter: 7 0 / 1 4 0 mm ; Thickness: 3 . 0mm Flange: 240*240*12 mm Hot dip galvanized pole with powder coating	Height: 8 m Top/ Bottom Diameter: 8 0 / 1 6 0 mm ; Thickness: 3 . 5mm Flange: 300*300*14 mm Hot dip galvanized pole with powder coating	Height: 1 0 m Top/ Bottom Diameter: 9 0 / 1 9 0 mm ; Thickness: 4 . 0mm Flange: 350*350*18 mm Hot dip galvanized pole with powder coating	Height: 1 2 m Top/ Bottom Diameter: 1 0 0 / 2 1 0 mm ; Thickness: 4 . 5mm Flange: 40 0* 40 0 *2 0 mm Hot dip galvanized pole with powder coating
Anchor Bolt	J bolt : M1 6 Number of J bolt: 4 pcs Length of J bolt: 5 0 0 mm ( hot galvanized J bolt available)	J bolt : M1 8 Number of J bolt: 4 pcs Length of J bolt: 7 0 0 mm ( hot galvanized J bolt available)	J bolt : M1 8 Number of J bolt: 4 pcs Length of J bolt: 9 0 0 mm ( hot galvanized J bolt available)	J bolt : M2 0 Number of J bolt: 4 pcs Length of J bolt: 1 1 0 0 mm ( hot galvanized J bolt available)
	RVV 2*2.5mm²	RVV 2*2.5mm²	RVV 2*2.5mm²	RVV 2*2.5mm²

Completed ProjectsShippingWe ship to worldwide by DHL,UPS,FEDEX,EMS or by Air or or by sea.We will select the fast and reliable way for delivery.Save on shipping and safer on delivery.
1.Items will ship within 2-7 business days after payment received.
2.You can mix all the items freely to place an order, thus you can save shipping cost.
3. Import duties,taxes and charges occured in buyer's country are not included in the item price
or shipping charges.These charges are the buyer's responsibility.
Return & Warranty 1. Items will be tested before shipping.
2. 3~5 years manufacturer's limited warranty for defective items( NOT excluding items wrong operated
or physical damaged by buyer).
3.Defective items MUST BE reported and returned within the warranty period in the original
packaging, also must provide us the return tracking number.FeedbackWe keep high standard of excellence and strive 100% customer satisfaction. Your satisfaction and positive feedback is very important to our business development. Please leave positive feedback if you are satisfied with our items and service. If you are not satisfied with this purchase, please be free to contact with u. We will try our best to help you until the problem is solved.

---
