High Precision Automatic DSZG-30 (T) CNC Drilling and Tapping Machine

US$4,299.00-4,499.00 1 Piece (MOQ)

Basic Info.

Model NO.
DSZG-30 (T)
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
0
Hole Diameter
30mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Drilling Speed
0 - 2500 R/Min
Voltage
380V
Power (Kw)
4.8kw
Spindle Taper
Mt3
Max. Drilling Diameter
30mm
Spindle Travel
160mm
Main Spindle to Work Table
645mm
Dimension(L*W*H)
1000*700*1970mm
Tapping Capacity
M33
Transport Package
Wooden
Specification
400kg
Trademark
CDK
Origin
China
HS Code
8459700000
Production Capacity
500sets/Month

Packaging & Delivery

Package Size
70.00cm * 80.00cm * 150.00cm
Package Gross Weight
300.000kg

Product Description

Product Description

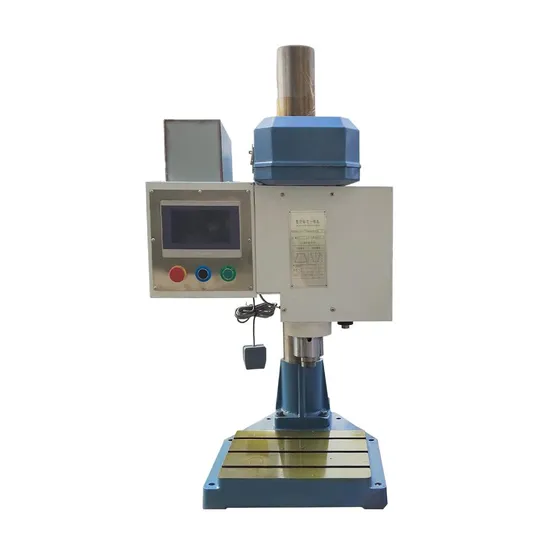

High Precision Automatic DSZG-30 (T) CNC Drilling and Tapping Machine
1.Designed according to CNC machining center.
2.This machine adopts double servo motor feed,one used to spindle rotation,the other to spindle feed power,and the synchronization is strong.
3.Using the drilling and tapping combination drill,the threaded through hole can be processed at one time.
4.Simple operation,repeatability up to 0.02mm.
