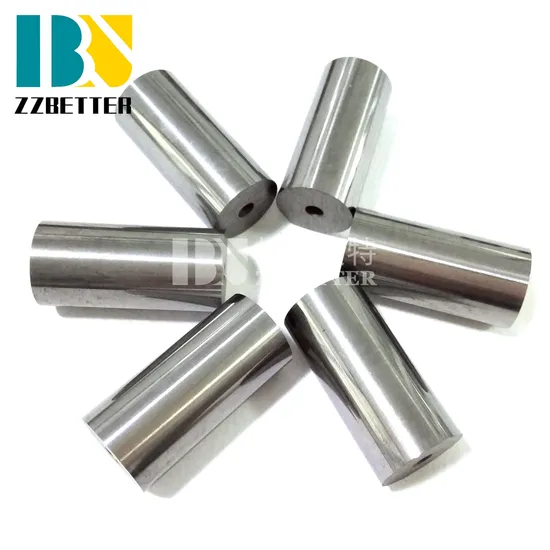

Tungsten Carbide Precison Dies for Gringding Wheel Making

US$45.00-70.00 5 kg (MOQ)

Basic Info.

Model NO.

Tungsten carbide precison dies

Processing Method

Punching and Shearing Mould

Technics

Tungsten Carbide Cold Heading Dies

Process Combination

Composite Mould

Manufacturing Technology

Automation Technology

Driving Motor Type

Hybrid

Mold Cavity Technology

CNC Milling

Milling Speed

Normal Speed

Parts Detection Method

Measurement of Three Axis NC

Product Name

Tungsten Carbide Precison Dies for Gringding Wheel

Other Name

Tungsten Carbide Forging Dies

Key Words

Carbide Dies, Carbide Mold

Applciation 1

to Be Used as Wear Parts

Applciation 2

to Be Used as Mold to Make Nails

Field Can Be Used 1

Fastener Industry

Field Can Be Used 2

Auto Industry

Field Can Be Used 3

Where High Enduribity Requried

Transport Package

in Carton

Specification

customized

Trademark

UBT

Origin

China

Production Capacity

40tons/Month

Product Description

Tungsten Carbide cold heading dies have high impact resistance, toughness, and wear resistance. They are mainly used in processing some hard metal tools, especially for bolts, rivets, heading of screws, nibs nuts, and so on.
Grade recommended:

Grade	ISO	Performance			Performance&application recommended
		Density	Hardness	TRS
		G/Cm3	HRA	N/mm2
YG11C	G20	14.4	88.5	2600	Forming or stamping dies for metal powders and nonmental powders.
YG15	G30	14.0	87.5	2800	For punching, stamping, forging tools under large stress.
YG18C	G30	13.7	84.5	3100	Impact resistance forging dies,hot-press forging dies and rollers.
YG20	G40	13.5	85.5	3200	For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, screws, screw caps.
YG20C	G40	13.5	83.5	3300	Dies for wear resistant or impact resistant application.
YG22C	G40	13.3	83	3500	Nut forming dies and high impact resistance forging dies.
YG25C	G50	13.1	82.5	3600	Stainless bolt header dies and rollers

The advantages of ZZbetter tungsten carbide heading dies
1. Many carbide grades available
2. Numerous sizes available
3. Normal and abnormal shapes available
4. High performance for hot forging and cold heading
5. Maintain good shape in high bending strength
6. Can offer precision grinding service
7. Accept custom design
8. Provide professional suggestions
9. Free sample can be provided
10. Strict quality controlled and short production time
Welcome to contact us for more details!
