US$75,600.00-486,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Automatic Grade
Automatic

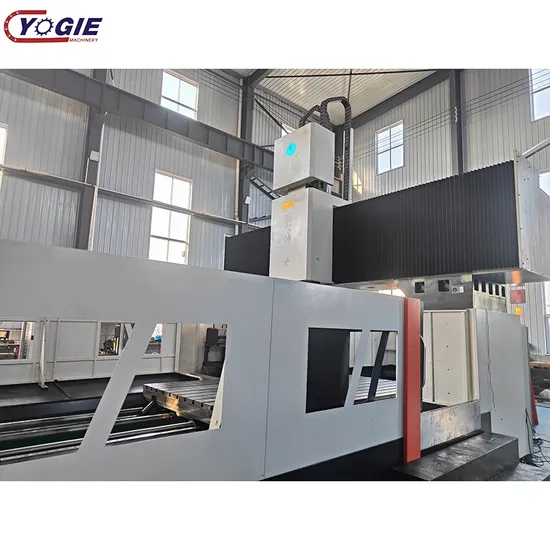

Type
Gantry Milling Machine
CNC Operating System
Siemens/Fanuc/Knd
Working Table Size
4000*2500mm
Left and Right Stroke (X)
4000mm
Back and Forth Stroke (Y)
3200mm
up and Down Stroke (Z)
1000mm
Distance From Spindle End to Worktable S
170-1070mm
Spindle Speed (Rpm)
6000rpm
Machine Tool Positioning Accuracy (GB /
0.01
Repeated Positioning Accuracy of Machine
0.01
Power Supply Requirements
380V
Machine Dimensions
9200*3800*3500mm
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
1000.000kg
Product Description
Product Description
Product Parameters
| Item | Main Parameter |
| CNC operating system | | KND/FANUC/SIEMENS |
| Working table size | mm | 4000×3200 |
| Left and right stroke(X) | mm | 4000 |
| Back and forth stroke(Y) | mm | 3200 |
| Up and down stroke (Z) | mm | 1000 |
| Distance from spindle center to column guide | mm | 260 |
| Distance from spindle end to worktable surface | mm | 170-1070 |
T-slot of worktable
(Number/size/spacing) | mm | 8-22×150 |
| Spindle taper(model/sleeve diameter) | | BT50/Φ190 |
| Use pull stud modle | | P50T-1 |
| Spindle Speed(rpm) | rpm | 6000 |
| X axis ball screw specifications | mm | 80×16 |
| Y axis ball screw specifications | mm | 63×12 |
| Z axis ball screw specifications | mm | 63×10 |
Machine tool positioning accuracy (GB/T
20957.4-2007 standard) | mm | 0.01 |
Repeated positioning accuracy of machine
tools (GB/T 20957.4-2007 standard) | mm | 0.01 |
| X/Y/Z axis rapid shift | m/min | 10/12/10 |
| Cutting speed | m/min | 8 |
| Spindle transmission mode | | Synchronous toothed belt drive |
| XYZ axis servo motor transmission mode and transmission ratio | | X-axis reducer directly connected 1:1;
YZ directly connected transmission Y-axis 1:1,Z-axis 1:1 |
| X,Y axis guide specifications | | X-axis four 55-gauge heavy-duty roller linear guides;
Y-axis three 55-gauge heavy-duty roller linear guides |
| Z axis guide specifications | | Rectangle hard rail |
| Square Ram Size | mm | 500×500 |
| Spindle power | KW | 28 |
| Recommended selection of servo motor parameters | N·M | 55/45/45 |
| Air source flow | | >0.5 |
| Power supply requirements | | 380V |
| Bed cushion height | mm | 30 |
| Workbench load bearing | kg | 15T |
| Machine dimensions | mm | 9200×3800×3500 |
| Light machine net weight | kg | 52t |
Company Profile
FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
>>
