Good Blades 9crsi Ce Hard Wood 10mm Chips 8ton/H Wood Chipper Machine for Sale

Product Description

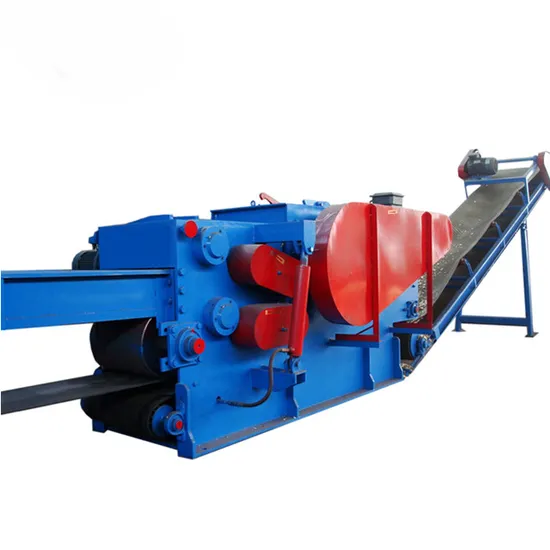

Good Blades 9crsi CE Hard Wood 10mm Chips 5ton/h Drum Wood Chipping Machine
--Introduction of Wood Drum Chipper:
It is special equipment for high quality wood chips. It is widely used to make the flake board, fiber board, building board, straw power plant. The drum chipper is of compact structure, easy operation, high capacity, wide raw materials adaptability, safe and reliable, convenient maintenance.
--Main Specification of Wood Chips Making Machine

Model	BX-315	BX-- 316	BX- 318	BX- 2113	BX- 2116
Knife Roller Dia(mm)	500	650	800	1300	1600
Knife QTY	2-4pcs	2-4pcs	2-4pcs	2-4pcs	2*2pcs
Input Openner(mm)	400*170	540*220	680*270	700*360	1200*400
Input Dia(mm)	150	200	250	280	300
Chips Size	10-35mm (Adjustable)		10-40mm(Adjustable)
Power(Kw)	45+8.9	45 or 55+11	110+14.7	220+17	350+24
Rotary Speed/rpm	595	592	650	520	500
Capacity	3-6T/Hour	8-12T/Hour	15-25T/H	30-50T/Hour	60-80T/Hour
Machine Size (L*W*H) (mm)	2600*1800*1400	3100*2000*1500	350*218*1800	3680*2450*2050	7700*2960*2200
Machine Weight(Kg)	3380	4680	8320	11850	19600

--Structure of Wood Drum Chipper:
1. This machine is made up of body, knife roller, the upper and lower feed roller, conveyor belt, hydraulic system.
2. It adopts high strength steel plate welded together, is the supporting basis of the whole machine.
Install two or three, four throwing knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block.
According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom; Large wood chips will be cut within the machine.
--Final Chips of Wood Drum Chipper:
The chip length is different in accordance with the requirements of paper plants, particular broad and fiber-board industries. In order to meet this need, we have improved different kinds of drum chippers recently, and the new type machines have more advantages. All the features show that it is ideal equipment for chip production which can be exported all over the world
--More Information of Wood Chips Making Machine
It could be driven by the electrical motor or diesel engine.
--FAQ before placing order of this machine:
A--------What is your raw material and the material diameter
B-----The capacity you want
C-------The final product size requirement (thicknes and the lenght)
B-----The driving types: The motor or the diesel drive
B-----what's your voltage requirement (we can produce the machine voltage as your requirement)
--Our Service:
1. CE certificate
2. Two years warranty without the spareparts
3. Professional and timely online service
