PVC Pet Barrels/Pipes/Pallets Crusher Waste Plastic Bottles Washing Drying and Crushing Machine

Product Description

Working Process:
1. Material Conveying → 2. Crushing → 3. Flotation Washing → 4. Second Flotation Washing → 5. Lifting and drying machin

S / N	Item Name	Function / Remark
1	Conveyor	Feeding material
2	Label removal machine	Remove labels from bottles
3	Crusher	Crushing the material into small size
4	Flotation Washing	Floating washing separate the sand,soil and other dirties
5	Second Flotation Washing	Floating washing separate the sand,soil and other dirties
6	Drying machine	Material drying collection and packaging

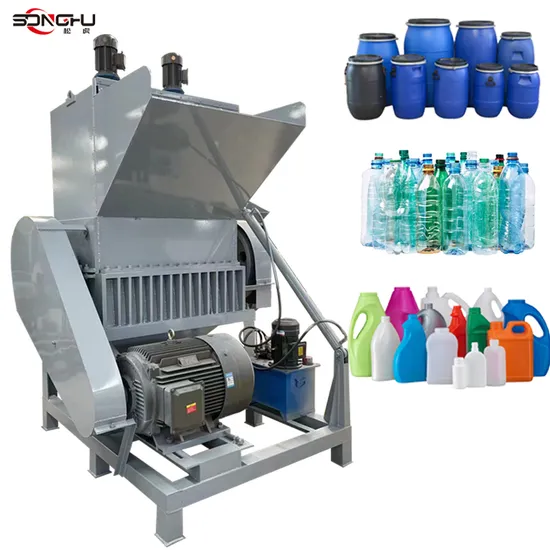

SHXR plastic crusher refers to crushing all kinds of plastics, such as plastic profiles, tubes, rods, silk threads, film, waste rubber products. Final scraps can be directly extruded as raw materials for production.The machine adopts a separate design, which is easy to overhaul and clean, and has a double-layer structure.
Our Waste Plastic PP/PE/PET Film Recycling Line is ideal for transforming waste PET bottles, barrels, and films into valuable clean flakes. This efficient system includes essential components like conveyors, metal detectors, crushers, and washing machines. It's customizable to fit your needs and available in sizes from 300 kg/h to 2000 kg/h. Choose our line for streamlined PET recycling. It features:
1.Efficient crushing and washing stages to produce clean flakes.
2.Customizable components to meet specific recycling needs.
3.A range of capacities from 300 kg/h to 2000 kg/h.
4.Flexible layout options, "L" or "U" shaped, for space optimization.
Model Power(kw) Grinding chamber (mm) Fixed blades(pcs) Rotary blade---A(pcs) Rotary blade---B(pcs) Output (kg/h) Dimension(L*W*H) (mm) Weight
(kg)

SHXR-400	7.5	370*400	2	6	24	50-100	1420*930*1410	535
SHXR-500	11	370*500	2	6	30	100-150	1420*1030*1410	600
SHXR-600	15	480*600	4	6	30	150-250	1760*1170*1835	1030
SHXR-700	18.5	480*700	4	6	36	200-400	1760*1270*1835	1130
SHXR-800	22	480*800	4	6	42	300-600	1760*1370*1835	1245
SHXR-820	30	800*800	4	6	30	500-1000	2895*1610*2880	2870
SHXR-1000	45	800*1000	4	6	39	1000-1500	2895*1825*2880	3236
SHXR-1200	55	800*1200	4	6		1500-2000	2895*1995*2880	3720

SHXR plastic recycling machine production line is a comprehensive system designed for processing a variety of plastic profiles, tubes, rods, silk threads, film, waste rubber products, including PET bottles like cola and mineral water bottles, as well as PET barrels and other scrap PET plastics,like PE/PP film, Plastic bottles, Plastic lumps, Plastic baskets, barrels, Plastic bags, Car tires, PVC pallets, PVC steel wire tubes and all related plastic materials.
This efficient line facilitates the transformation of waste into clean flakes through a series of steps: crushing, washing, and drying.The end result is a high-quality product that can be further utilized in the production of fibers, tapes, and various other PET-based items, effectively doubling its value.
Wuxi Songhu Xinrui Machinery Co., Ltd. is a professional manufacturer of PE mills and PVC crusher equipment. We have an excellent R&D team and technicians, which lays the foundation for producing high-quality machines.
Established in 2007, Songhu Xinrui has been committed to providing the world with the best quality plastic PE grinding and PVC crushing machinery. With a top-notch team and the strictest manufacturing standards, Songhu Xinrui has become a leader in domestic plastic machinery manufacturing. Our products include PE grinding machines, PVC crushing machines, and other plastic recycling machinery, suitable for sheets, small pipes, plastic steel, resin tiles, wall panels, buckle plates, pipes, foam boards, footings, and many other materials. Songhu Xinrui's products have been exported to more than 50 countries and regions worldwide.
We offer a range of products to meet various needs. Since our company's establishment, we have adhered to the business policy of "Quality First, Customer First, Reputation-Based," and we believe that "the most suitable is the best." We are confident that quality products and reliable service can elevate your business to the next level. We are committed to continuous innovation and discovery to meet the diverse needs of our customers. In today's globalized economy, our company is eager to cooperate with enterprises worldwide to achieve mutual benefits and win-win situations.

Q: Are you a machinery factory or a trading company?
A: We have our factory, which allows us to strictly guarantee product quality and lead times.
Q: If we have a very special request for the production line, can you help with the design?
A: Yes, our experienced mechanical designers can provide customized designs.
Q: Do you provide material testing services?
A: Yes, we offer testing services for our machines. An additional testing fee will apply, depending on the costs (electricity, labor). However, if you purchase with us, the testing fee will be deducted from the machine's purchase cost.
Q: How can I ensure the machine runs well in my plant?
A: We conduct a home commissioning in our factory for your inspection. If needed, we can send engineers for installation assistance and staff training, and to address any issues.
Q: How can I get a quote efficiently?
A: Click the 'Send an Inquiry' button at the bottom of the page or 'Chat Now' on the right side. Leave a message with details of your final products (including pictures and size drawings) and capacity requirements. We will respond within 12 hours.
Q: How can we visit your company and machines?
A: Our factory is located in Wuxi, Jiangsu Province, China.
Q: What are the payment methods?
A: We accept T/T, L/C, Western Union, etc.

---
