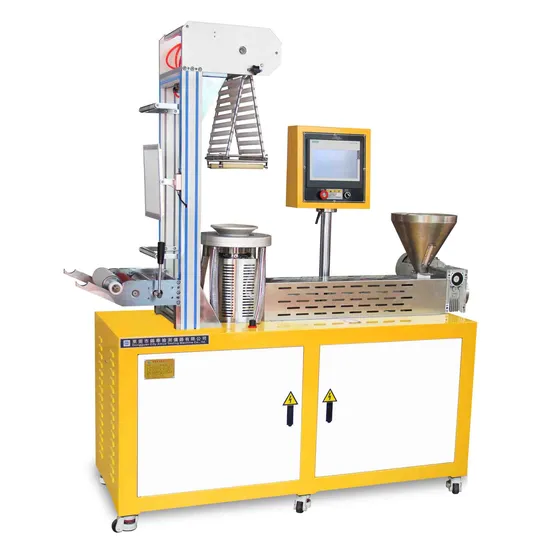

Plastic Mini Blown Film Machine PVC Shrink Film Extruder

Product Description

Use for: PE,LDPE,LLDPE,masterbatch, filled masterbatch, plastics additives, functional masterbatch and so on. This mini film blowing machine is suitable to use for laboratory working. Extrusion blown film refers to the plastic melt at a certain temperature, a certain shear force is continuously extruded through a die, blown by compressed air, air cooling and frequency pulling ring obtained double-folding plastic film process. This machine is mainly used to detect the feasibility of blowing film for polymer materials, as well as the dispersion of pigments and masterbatches.
Production Application:
1. Used for PE, PP, PLA, LDPE, HDPE and other plastic materials which could be blown film.
2. New material formula development
3. Film blowing property test.
4. Masterbatch color dispersion test
5. Optimization of blown film production technology
6. Making single layer blown film samples for clients
Technical Parameter:

XH-430B-25	Screw diameter	25mm
	Screw L/D	33:1
	Screw rotating speed	0-95 rpm
	Main motor power	3.7kW
	Die diameter	25mm
	Film thickness	0.02-0.2mm
	Max fold width of film	200mm
	Power supply	380V/50Hz/3 phases or customerized
	Control system	SIEMENS PLC touching screen control

Machine Pictures:
PLC Interface: Blowing Die Mouth:
Blown Film: Observation Light:
Our Team:
Our Factory :
Our Workshop:
Our Show Room:

---
