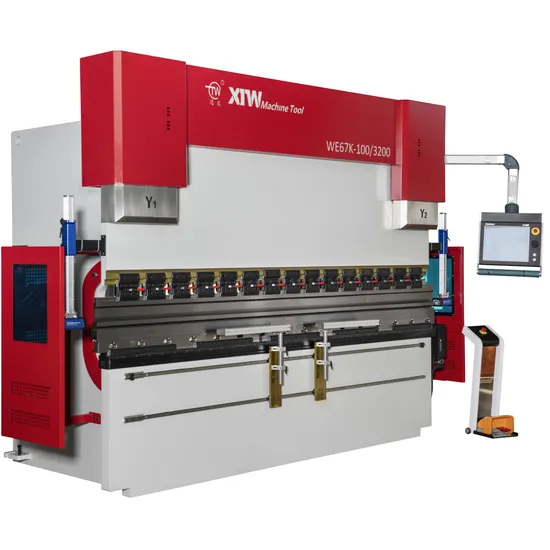

Versatile Press Brake with Mechanical Crowning and 42CrMo Tooling

Product Description

You may also like: Product Parameters

Model	Noirminal Pressure(KN)	Working Length(mm)	Distance between Columns(mm)	Throat Depth(mm)	Ram Stroke(mm)	MAX Opening Height(mm)	Motor Power(KW)
WE67K-40T2000	400	2000	1600	200	100	300	4
WE67K-63T2500	630	2500	1900	250	120	350	5.5
WE67K-63T3200	630	3200	2500	250	120	350	7.5
WE67K-100T2500	1000	2500	1900	320	120	380	7.5
WE67K-100T3200	1000	3200	2500	320	120	380	7.5
WE67K-100T4000	1000	4000	3000	320	120	380	7.5
WE67K-130T2500	1300	2500	1900	320	120	380	7.5
WE67K-130T3200	1300	3200	2500	320	120	380	7.5
WE67K-130T4000	1300	4000	3000	320	120	380	7.5
WE67K-160T3200	1600	3200	2500	320	200	460	11
WE67K-160T4000	1600	4000	3000	320	200	460	11
WE67K-200T3200	2000	3200	2500	320	200	460	15
WE67K-200T4000	2000	4000	3000	320	200	460	15
WE67K-250T3200	2500	3200	2500	400	250	520	22
WE67K-250T4000	2500	4000	3000	400	250	520	22
WE67K-250T6000	2500	6000	4800	400	250	520	22
WE67K-300T3200	3000	3200	2500	400	250	520	22
WE67K-300T4000	3000	4000	3000	400	250	520	22
WE67K-300T6000	3000	6000	4800	400	250	520	22
WE67K-400T3200	4000	3200	2300	400	250	570	30
WE67K-400T4000	4000	4000	3000	400	250	570	30
WE67K-400T6000	4000	6000	4800	400	250	570	37

Product Description
Machine Structure
1. Unparalleled craftsmanship shines through our self-designed and meticulously manufactured main components, crafted with an overall steel plate welded structure for exceptional strength and rigidity.
2. Leveraging cutting-edge UGS/CAD/CAE/CAM 3D software, our main structure benefits from finite element analysis and an optimized design for superior performance.
3. Employing advanced vibration aging techniques, we eliminate internal stress and rigorously test key welds for flaws, ensuring reliability and durability.
4. Our machine tool's column, upper working slide, and lower working table are masterfully processed in a single operation with floor boring and milling machines, guaranteeing flawless parallelism and precision.
5. The innovative up-moving bending design ensures stable operation, user-friendly control, and heightened safety.
6. Equipped with a pressure-holding delay function at the bottom dead center, our machine assures workpiece precision every time.
7. Structural parts undergo meticulous derusting through sanding and are fortified with a coat of anti-rust paint for enduring protection.
8. Separate programmability of the Y1, Y2, X, +1 (V) axes allows for versatility, handling eccentric loads, and crafting special shapes with ease.
Hydraulic System 1. The hydraulic prowess of our machine is driven by a high-performance proportional servo valve group from German BOSCH company, designed with a compact structure and superior sealing performance, offering exceptional synchronous control precision and longevity. 2. Our oil pump, sourced from an American joint venture, showcases remarkable resilience to high pressure with impressively low noise levels.
3. Featuring the renowned sealing elements from Japan NOK , our oil cylinder boasts low wear and zero leakage. Crafted with precision using Japan Toshiba's five-axis linkage and Dari M132/300 CNC lathe, the cylinder's inner surface is honed to perfection while the piston rod's exterior is polished through vibration grinding.
4. A clear and intuitive display system provides effortless monitoring of oil level height and temperature.
5. An advanced overload overflow safety protection is built into the hydraulic system, safeguarding against unexpected stress.
6. A high-precision guidance, position measurement, and hydraulic equalization system accommodate full-length processing with unmatched accuracy.
7. Our machine guarantees continuous operation under rated load, with a leak-free hydraulic system that maintains stability and high precision throughout.
8. Utilizing an external large-diameter filling valve, our system achieves remarkable precision with minimal loss.
Crowning Table
+1(V) axis: Our mechanical tie rod deflection compensation worktable ensures precise machining accuracy across the workpiece. Comprising multiple wedge sets driven by a motor, the system forms ideal convex curves along the worktable's length based on system signals. This approach offsets working table deformation under stress, enhancing part quality by adjusting worktable-slider winding compensation as per ground pressure. The numerical control device manages the convex device's pre-convex amount by inputting data about sheet thickness, lower die opening, and tensile strength into the system, automatically determining the bending force and compensation values for exact pre-bulge every bend.
Certifications
Company Profile
NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Nestled in the heart of the Central Jiangsu Plain, in Haian Libao-revered as the 'hometown of Chinese shearing, folding, and rolling machine tools'-Nantong Xintongwei Machine Tool Co., Ltd finds its strategic location. With the Yellow Sea to the east and the mighty Yangtze River to the south, the company is bordered by the Xinchang Railway to the west and conveniently situated near the 204 and 328 national highways. Originally established as 'Haian County Haiwei Machine Tool Factory', our company has carved a niche in producing premium qualityTongweibrand series of cutting-edge shearing machines, bending machines, rolling machines, leveling machines, slitting machines, and comprehensive uncoiling and leveling production lines, among other state-of-the-art sheet metal processing equipment. Our team boasts a cadre of seasoned professionals dedicated to forging design excellence. By forging strong alliances with eminent casting and forging research institutes and major technical research bodies, we continually refine our product structure, placing the application of new technologies at the forefront of the industry. This relentless pursuit ensures our machines perform at an internationally advanced level, emerging as the ideal substitutes for imported counterparts. Over the past few years, we have pioneered various innovative structures and technologies, securing multiple patents. Our products consistently pass rigorous provincial and municipal quality and technical evaluations, earning us the prestigious title of 'Contract-honoring and Promise-keeping' enterprise. With widespread acclaim, our products are not only a staple across China but have also made significant inroads into Southeast Asia, West Asia, Africa, Russia, and various European countries, solidifying our presence in European and American markets. Driven by the ethos of 'Quality First, Service First, Reputation First', we place customer satisfaction at the core of our operations, steadfastly offering comprehensive pre-sale, in-sale, and after-sale services to our valued clientele.

---
