Factory Price CNC Machine Tools Ck6150V Parallel Flat Bed Horizontal High Precision Metal Turning Torno CNC Lathe Machine

Product Description

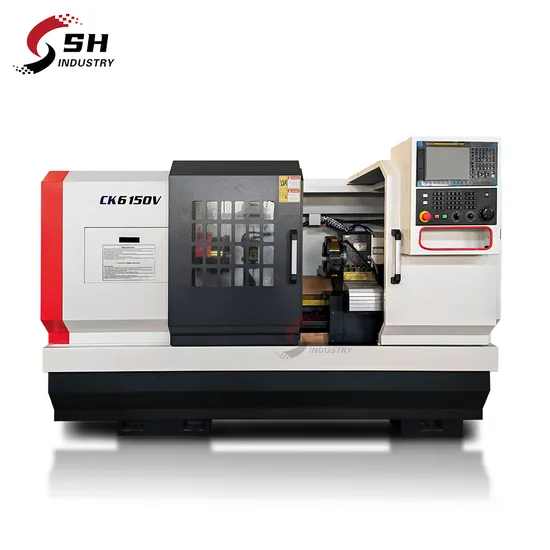

CK6150V 400mm Bed Width Horizontal CNC Lathe Machine (CNC Lathe Machinery)
Product Description

CNC Lathe Use:
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Technical Specifications:

SPECIFICATIONS	Units	CK6150V
Swing over bed	mm	500
Swing over cross slide	mm	250
Distance between centers	mm	1000/1500/2000
Spindle bore	mm	82 (Optional 130)
Spindle bore taper	-	Metric φ90/1:20
Spindle nose type	-	A2-8(A2-11)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	1800 (Optional 800)
Turret/tool post	-	Electric 4 position
Tool size	mm	25 x 25
X axis travel	mm	300
Z axis travel	mm	1000/1500/2000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	75
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	200
Main spindle motor	kw	7.5
Coolant pump motor	kw	0.125
Total rated power	kw	11
Total rated current	A	23
Weight for 1000	kg	2900
Weight for 1500	kg	3300
Weight for 2000	kg	3700
Dimension for 1000	mm	2950x1700x1800
Dimension for 1500	mm	3650x1700x1800
Dimension for 2000	mm	4250x1700x1800

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
