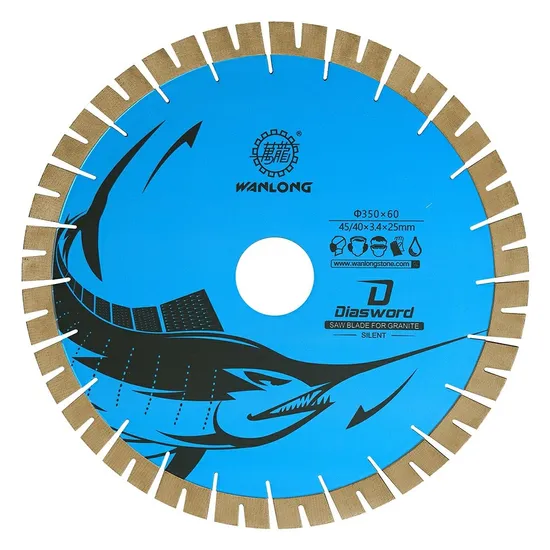

Arix Segment Diamond Saw Blade

Product Description

Sharp Arix/Pattern-Set Diamond Segment for stone Cutting
Characteristics:
1. Compared with other segment formular, 30% cutting speed enhanced at least.
2. Applicable for different hardness of granite, multi-purpose.
3. The consumption of electricity power can cut down 30% at least.
4. Compared with other segment formular, the cutting voice could cut down 30% with the same cutting condition.
5. Excellent performance on trimming cutting and lifespan.

Diameter(mm)	thickness of steel core(mm)	Segment size(mm)	Segment No.	Application
300	2.2	44/40x3.4/3x15	21	granite
300	2.2	20x3.4/3x15	40
350	2.2	44/40x3.4/3x15	24
350	2.2	20x3.4/3x20	46
400	2.6	44/40x3.8/3.4x15	28
400	2.6	20x3.8/3.4x20	52
450	3.0	40x4.2/3.8x15	32
450	3.0	20x4.2/3.8x20	58
500	3.0	40x4.2/3.8x15	36
500	3.0	20x4.2/3.8x20	66
600	3.6	40x4.8/4.4x15	42
600	3.6	20x4.8/4.4x20	78
650	3.6	40x4.8/4.4x15	46
650	3.6	20x4.8/4.4x20	84
800	4.5	40x4.8/4.4x15	57
800	4.5	20x4.8/4.4x20	100
850	4.5	40x6.5/5.4x15	58
850	4.5	20x6.5/5.4x20	106

Other specifications are available upon request.
Silent and non-silent blades are also available
1. Different kinds of shape direct at the best performance to meet the different cutting requirements.
2. Excellent effect on: Mrble, granite, limestone, concrete etc..
3. Good cutting result: smooth cutting, flat surface and even size.
4. Stable cutting, narrow cutting gap, stone waste reduction.
5. High efficiency with long lifespan.
6. Design by top engineer in China.
7. Other specifications are available upon request.

Product Name	Diameter(mm)	Segment Dimension(mm)	Segment Number(pcs)	Shape	Application
Wanlong Diamond Segment for Marble, edge cutting	300	43/40x3.2x10	22	it depends	Granite,Marble
	350	43/40x3.2x10	25
	400	43/40x3.6x10	29
	450	43/40x4.0x10	32
Wanlong Diamond Segment for Marble, splitting	400	40x3.8x10	28
	450	40x4.2x10	32
	500	40x4.2x10	36
	550	40x5.0x10	40
	600	40x5.0x10	42
	650	40x5.5x10	46
	700	40x5.5x10	50
	750	40x5.5x10	54
	800	40x6.0x10	57
	850	40x6.0x10	58
Wanlong Block Cutting Segment for Marble, block cutting	900	24x7.5x10(13)	64	Z	Granite,Marble
	1000	24x7.5x10(13)	70
	1200	24x8.0x10(13)	80
	1400	24x8.5x10(13)	92
	1600	24x9.5x10(13)	108
	1800	24x10x10(13)	120
	2000	24x11x10(13)	128
	2200	24x11x10(13)	132
	2500	24x12.5x10(13)	140
	2700	24x12.5x10(13)	140
	3000	24x13x10(13)	160

---
