Sign Hot Sale 4*8FT 3D Wood Router A2-1325/1530/2030/2040 CNC Router Machine Wood CNC Cutting Woodworking Engraving Router

US$4,000.00
1 set
US$3,500.00
2+ set

Basic Info.

Model NO.
A2-1325
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Woorking Area
1300*2500*200mm
Spindle Power
6kw Air-Cooled Spindle
Guide Rails
25mm Square Guide Rails
Command Code
G Code
Control System
DSP B11
Model of Driver
Leadshine
Z- Axis Height
200mm
Oil Lubrication System
Manual
Motor
AC Servo Motor and Driver
Software
Artcam with Post-Processing
Transport Package
Standard Export Wooden Box
Specification
13 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month

Product Description

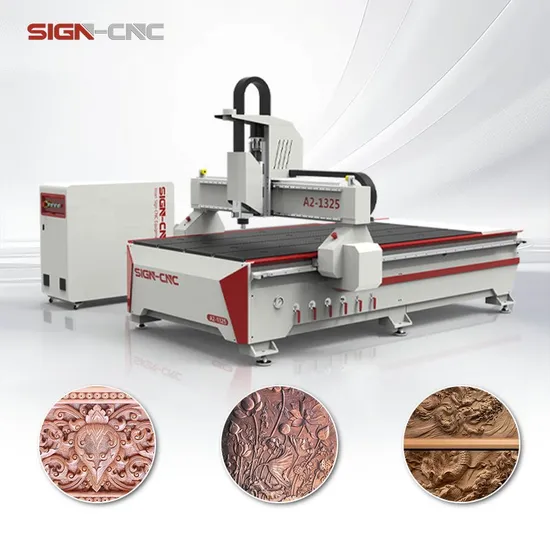

Sign Hot Sale 4*8Ft 3D Wood Router A2-1325/1530/2030/2040 Cnc Router machine wood cnc cutting machine With Servo Motor
Specification
Model
A2-1325/1530
X, Y Working size
1300x2500mm/1500x3000mm
Z feed Height
200mm
Table Surface
Vacuum table
X, Y Structure
Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Spindle Power
6.0KW HQD spindle
Spindle speed
0-18000RPM
Drive Motors
Servo motor and driver
Working Voltage:
AC220V/50/60Hz
Command Language
G code
Control System
DSP B11
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Optional Parts
Rotary system,
Panasonic Servo motors

FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
